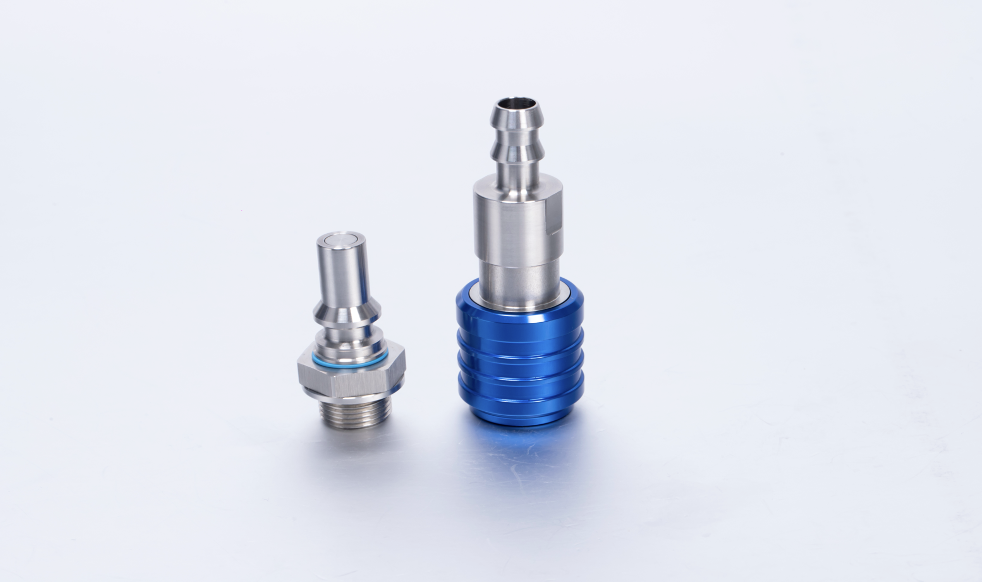

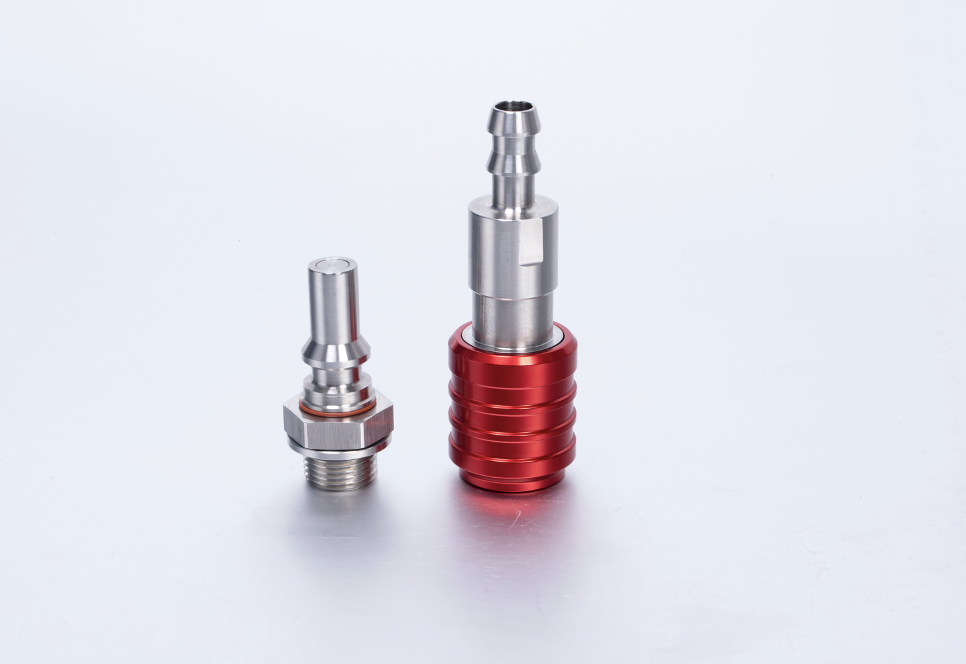

The SITELIN UQD is specifcally designed for thermal management applications and is available in 4 sizes and 2 colors. lt complies with the OCP and exceeds the requirements of the specifed performance characteristics. The Stirling UQD is colour-coded (red and blue) and guarantees 100% heliumleak detection.
Product Features
- Designed according to the UQD specifcations of the OCP
- Easily push the connection with one hand
- High flow rate with no spillage
- Two-way cut-off
- Optimized connection force
- Standard material: stainless steel with broad fluid compatibility
- Standard sealing material: EPDM
- Female connector sleeve and male connector O-ring color coding (red/blue)
- Multiple port connection options: maleconnector end ORB and BSPp threads:The female connector adopts a pagodatail end. Other configurations are also available upon request
- Operating temperature -40’c to +150″C
- Standard operating pressure: 0.9 bar. Smaller sizes up to 20 bar
