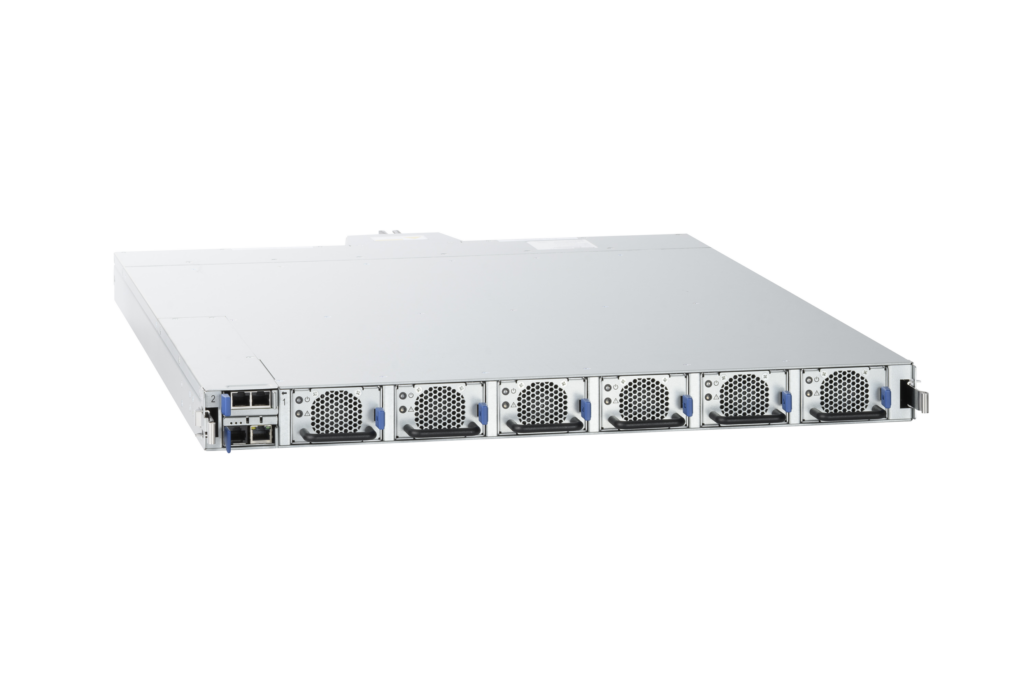

MWOCES-211-P-D is a 33.0kW, 21” 1OU power shelf that provides a delivery system for up to six 67mm, 1OU Power Supplies (PSU), and one Remote Management Unit (MWOC-RMU-3). It is intended to support 50.0V power distribution architectures in OCP (V3) systems.
Two AC input connectors accommodate either three-phase four-wire delta (without neutral) or three-phase five-wire wye (with neutral) configurations for added flexibility. Each input is configured to power a group of three power supply module slots. DC output connection is provided by pluggable bus bars.
