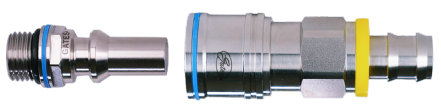

Gates® Universal Quick Disconnect (UQD) Couplings deliver the uncompromising performance your critical infrastructure requires. With maximum flow, reliable sealing, and compatibility with Gates® Data Master™ and other data center cooling hoses, ensure the right configuration every time.
Product Features:
• Coupling housing is made of 316L Stainless Steel with EPDM seals
• Full CV values published for all sizes for predictable system design
• Superior corrosion resistance to maintain fluid purity
• Enables tool-less connection and disconnection with leak-free disconnects
Technical Specifications:
• Operating pressures up to 290 psi (20 bar)
• Minimum burst pressure of 1,160 psi (80 bar)
• Operating temperature range of -40°F to 248°F (-40°C to 120°C)
• Shipping/storage temperature range of -40°F to 302°F (-40°C to 150°C)

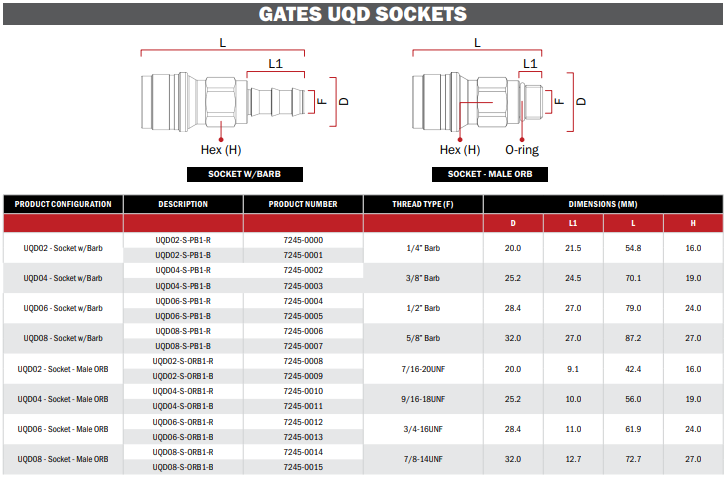

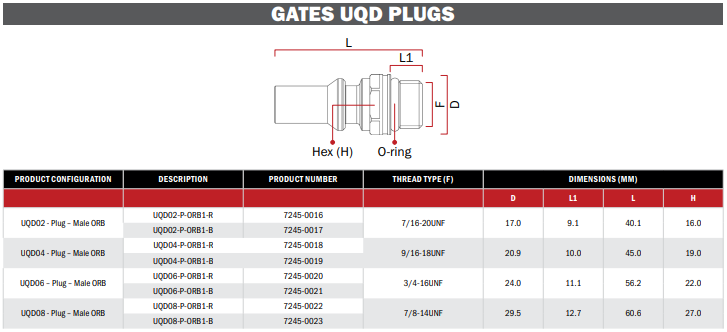

• Please reference tables for dimensions and other information
