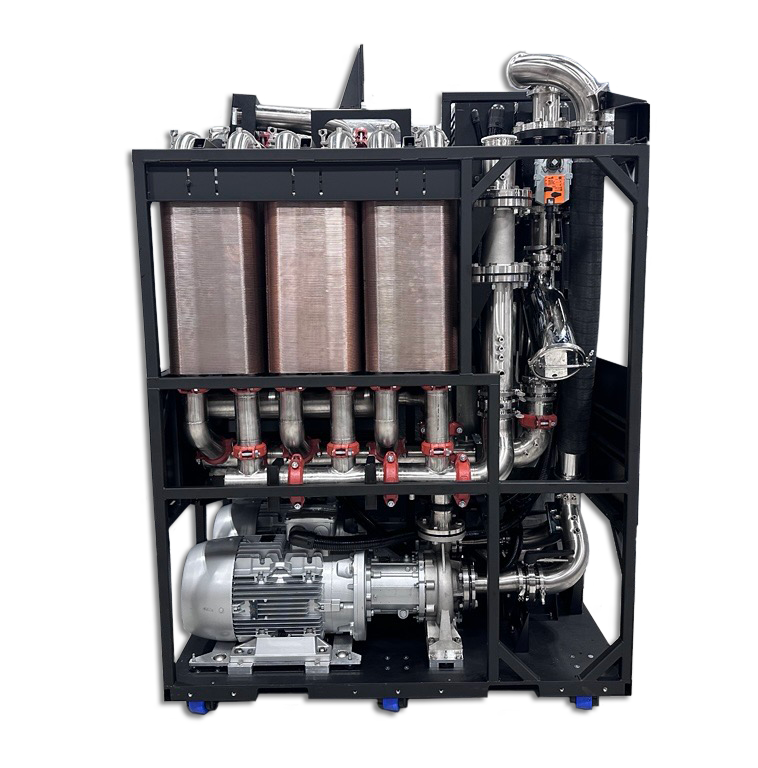

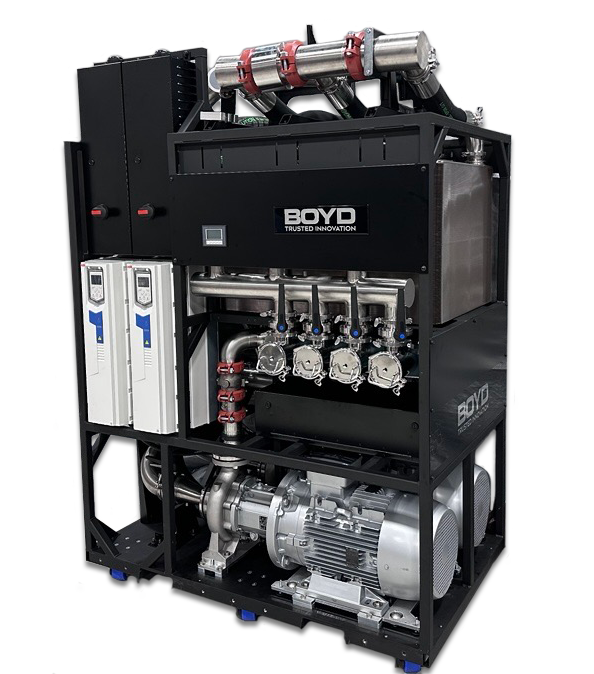

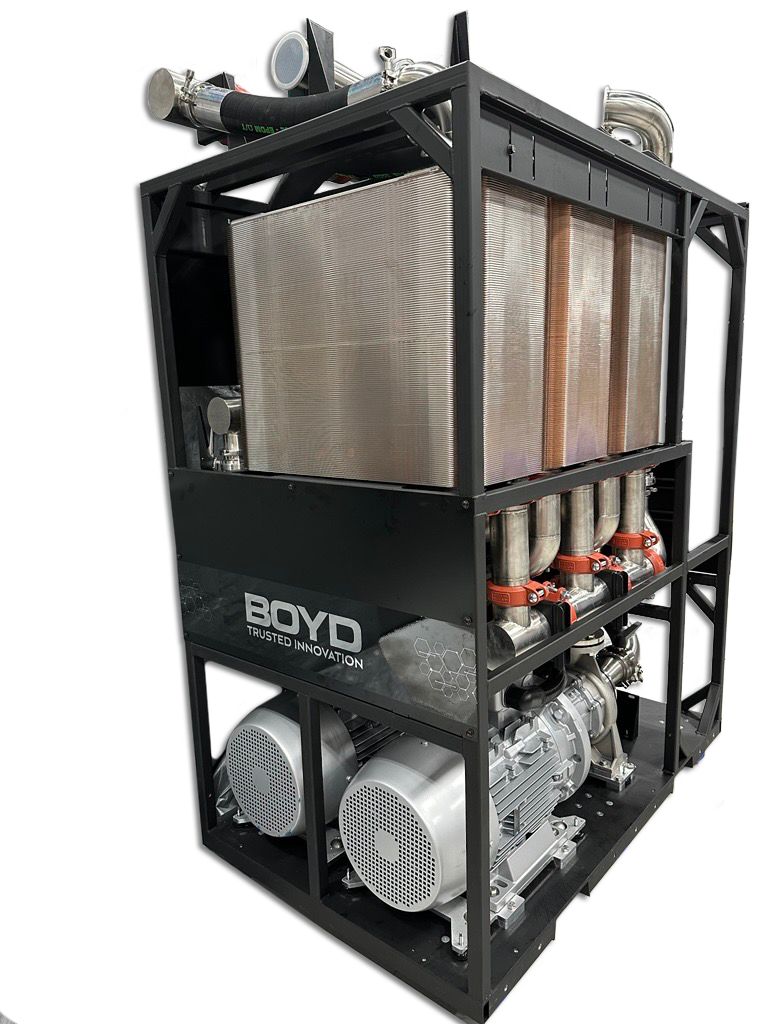

Eaton’s ROL4000-48U65 in-row liquid-to-liquid coolant distribution unit enables cooling for the next generation of AI processors in high density data center installations. With 2 MW of cooling at a 3°C approach temperature, this CDU boosts energy efficiency by reducing facility cooling requirements. The ROL4000 was developed with next generation TCS loops in mind by providing up to 80 PSI of available pressure to drive flow though high-performance cold plate loops, control valves and other components.
Maximize your overall uptime with the ROL4000’s reduced maintenance requirements and longer lifetimes, supported by seal-less N+1 pumps, fully redundant power feeds for each pump circuit and 0.2 micron side stream filtration. Additional features for the ROL4000 include:
– 2 MW cooling at 3°C ATD
– Up to 80 PSI of available pressure
– Seal-less N+1 pumps
– 0.2 micron side stream filtration
– 500 GPM (1890 LPM) TCS flow rate with PG25
– IEEE 519 ULHD variable frequency drives keeping power clean
– 230 VAC convenience port for fill cart for ease of service
Inspired by OCP’s fifth generation Project Deschutes CDU specification, Eaton’s ROL4000-48U65 combines performance, reliability, lifetime, and serviceability into a single unit. Quickly upgrade your installation with Boyd Thermal by Eaton’s streamlined design and global service team with decades of experience commissioning direct-to-chip liquid cooling systems.
