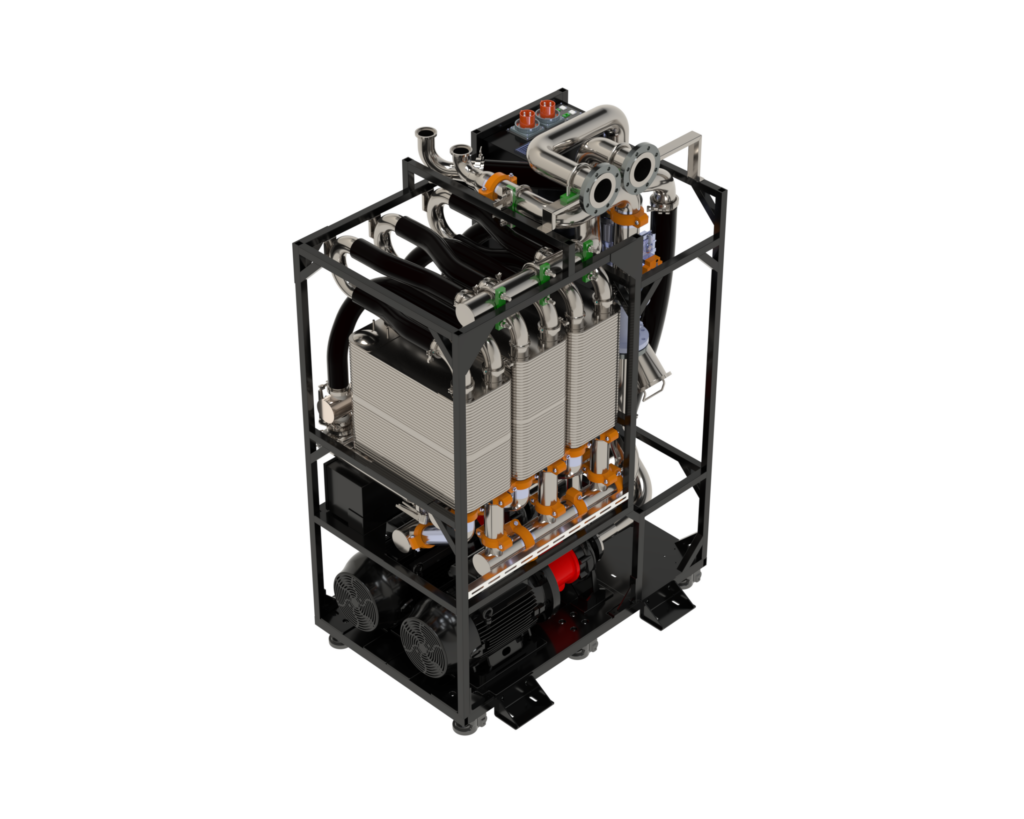

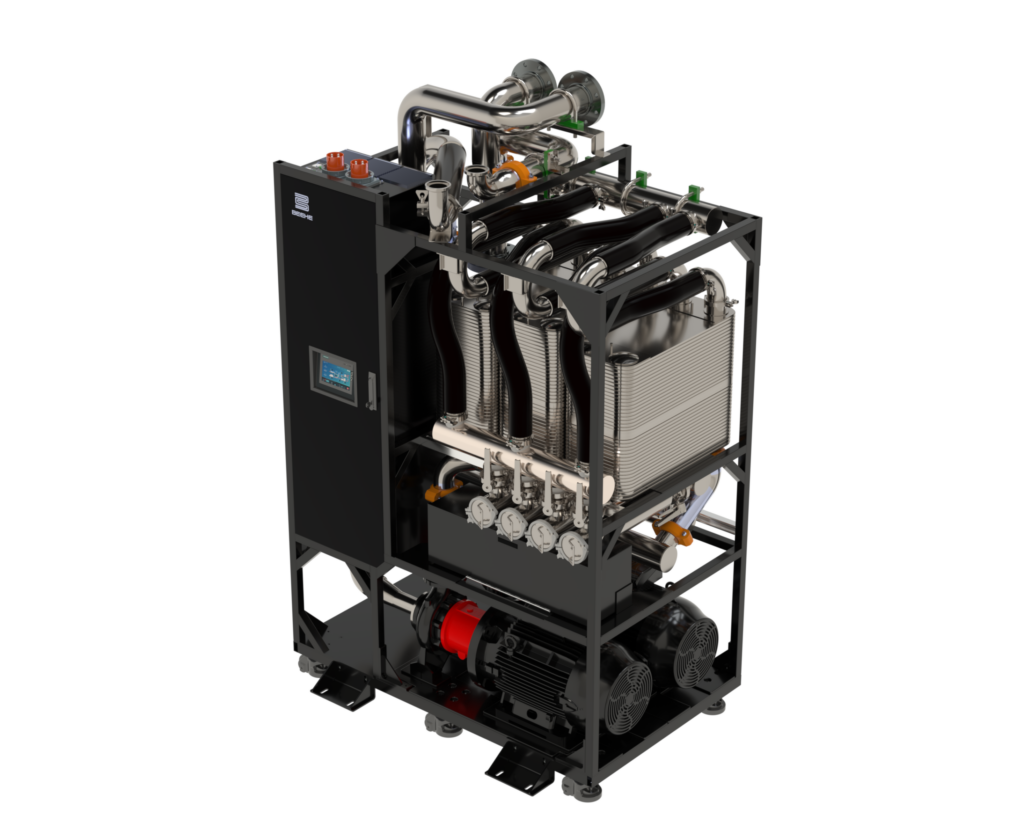

Beehe IB2000 In Row L2L CDU is based on Google Project Deschutes 5 Open CDU. The main technical specifications are as follows:
– Cooling capacity: 2000kW @3℃ ATD
– Rated flowrate: 500 GPM (1890 LPM)
– Available pressure head: 80 PSI (5.5 Bar)
– Input power: 3P AC380-480V 50&60Hz
– Pump configuration: N+1 Sealless pumps
– Primary side filtration: 500μm
– Secondary side filtration: 25μm
– Side stream filtration: 0.2μm
– Fully redundant power feeds for each pump circuit
– IEEE 519 ULHD variable frequency drives
– 230 VAC convenience port for fill cart
