INTRODUCTION
The Alfa Laval CB112 copper brazed plate heat exchanger (BHE) is engineered to provide efficient heat transfer with a compact footprint. The brazing material seals and holds the plates together at the contact points ensuring optimal heat transfer efficiency and pressure resistance. Using advanced design technologies and extensive verification guarantees the highest performance and longest possible service life. Alfa Laval CB112AQ is AHRI Certified through the Liquid to Liquid Heat Exchangers (LLHE) Certification Program which ensures thermal performance in accordance with the product specifications.
POSITION IN DATA CENTER
The plate heat exchanger is part of the In-Row CDU and functions as a circuit breaker between the medias in the system, minimizing the volume of the coolant required. The CB112 may also be used as a interface heat exchanger for waste heat recovery.

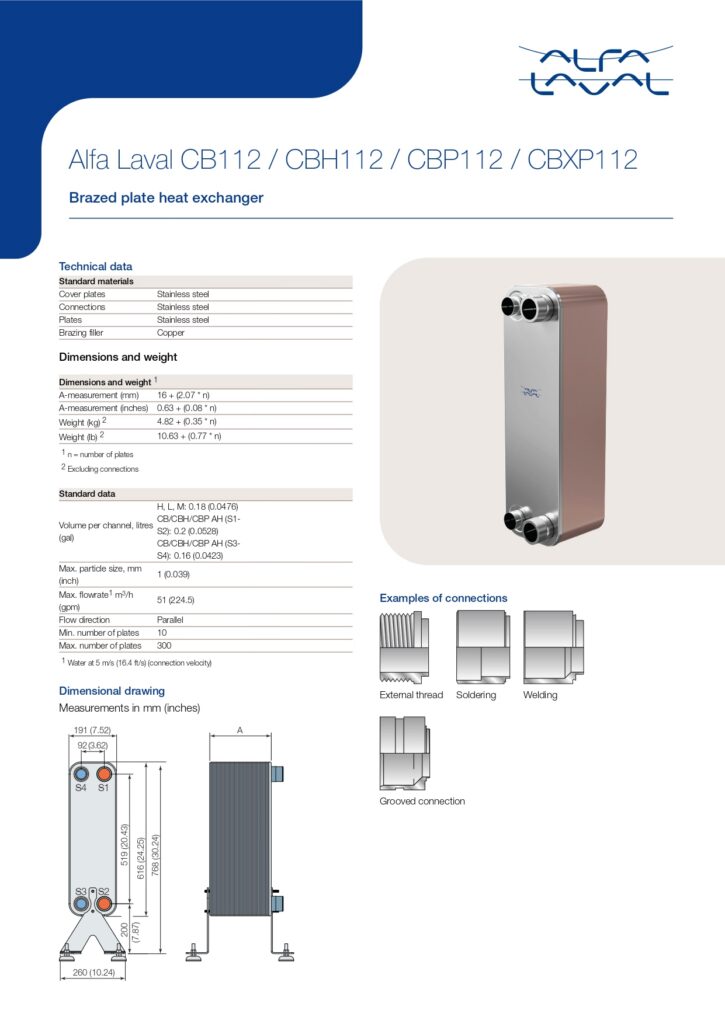

TECHNICAL DATA
Component – Material
• Cover plates – Stainless steel
• Connections – Stainless steel
• Plates – Stainless steel
• Brazing material – Copper
OPERATIONAL DATA
Specification – Value
• Pressure vessel approvals – UL, PED, ASME
CONNECTIONS
• Wide range of connection offerings, e.g. TriClamp, Victaulic, Threaded, Flanges
