The Ayar Labs optical I/O solution is a small-footprint, low-power, high-throughput alternative to copper backplane and pluggable optics-based interconnect solutions.
Combining silicon photonics with standard CMOS manufacturing processes, Ayar Labs’ optical I/O solution delivers up to 5x–10x higher bandwidth at 10x lower latency and 4x–8x more power efficiency compared to traditional interconnects: pluggable optics plus electrical SerDes.

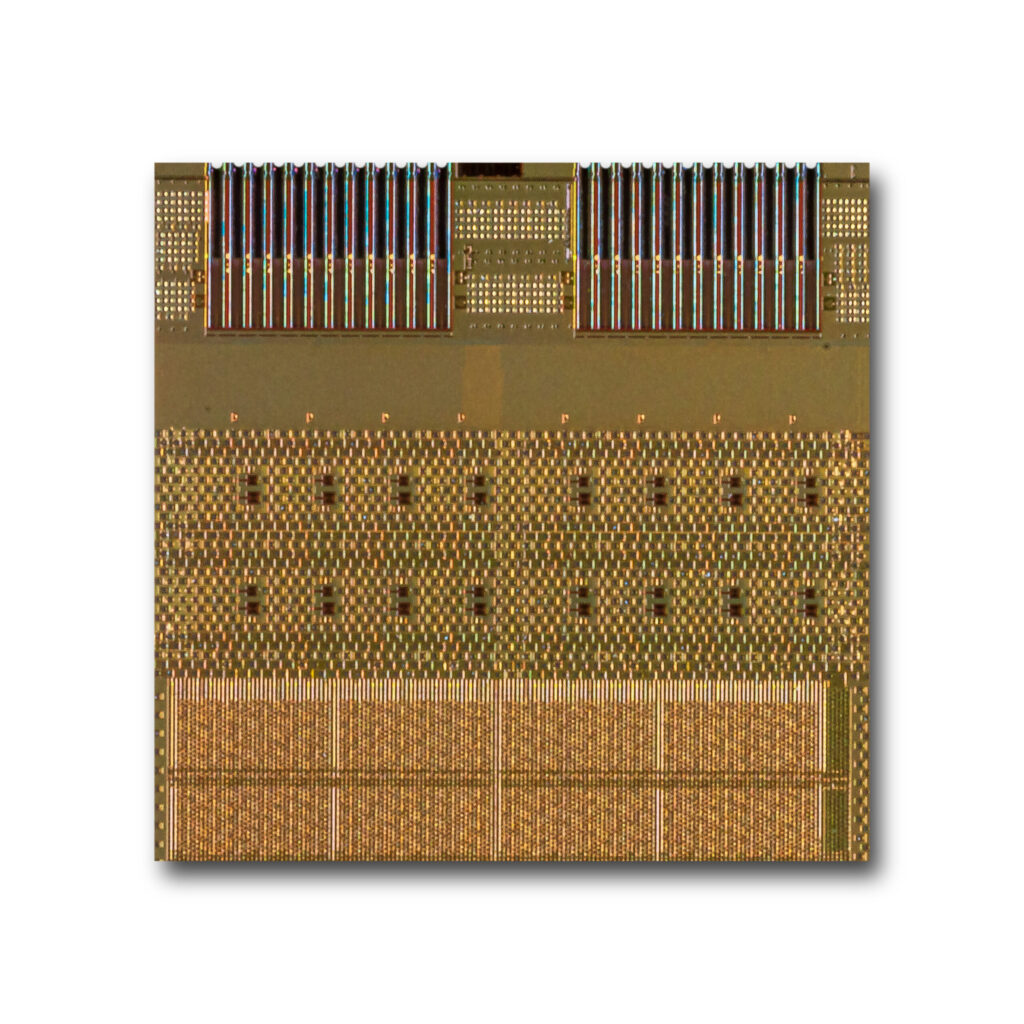

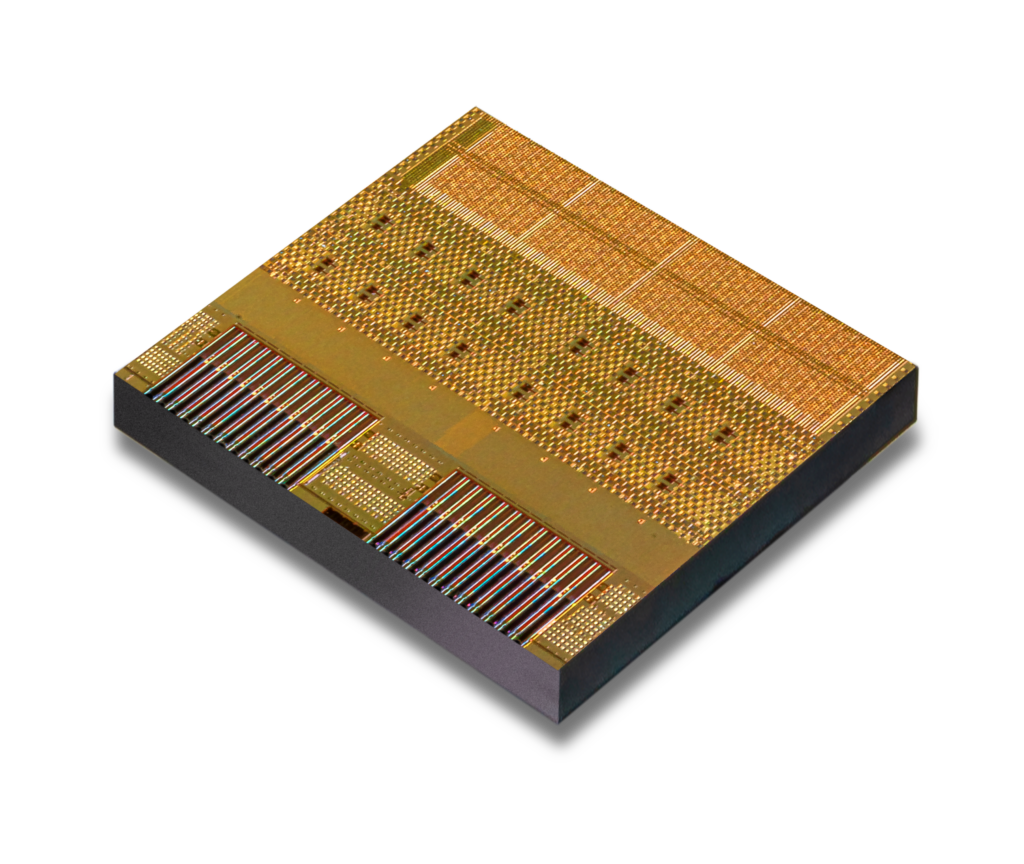

The 4 Tbps optical I/O solution from Ayar Labs combines a TeraPHY™ electro-optical chiplet and a SuperNova™ remote light source, delivering 8 x256G optical ports and achieving up to 2.048 Tbps full-duplex (4.096 Tbps total) throughput.
The electrical interface of the current generation TeraPHY is compliant with the Advanced Interface Bus (AIB) specification, while the next generation will be UCIe compatible. In addition, our optical interface follows the CW-WDM MSA specification for 8 wavelength optical sources.
As AI, HPC, and datacenter infrastructure demand increasing compute-to-compute and compute-to-memory bandwidth density at high efficiency, optical I/O solutions are becoming the go-to answer. Large Language Models (LLMs) are evolving rapidly, and optical I/O offers the scalable connectivity required by next-generation AI hardware architectures.
Key Features:
• Compact, low power and ultra-low latency optical connectivity solution
• Up to 2km reach
• AIB-based electrical interface (next generation will be UCIe)
• Remote laser source, CW-WDM MSA compliant
Throughput:
• Up to 2.048 Tbps full-duplex
• Up to 256 Gbps full-duplex per fiber
