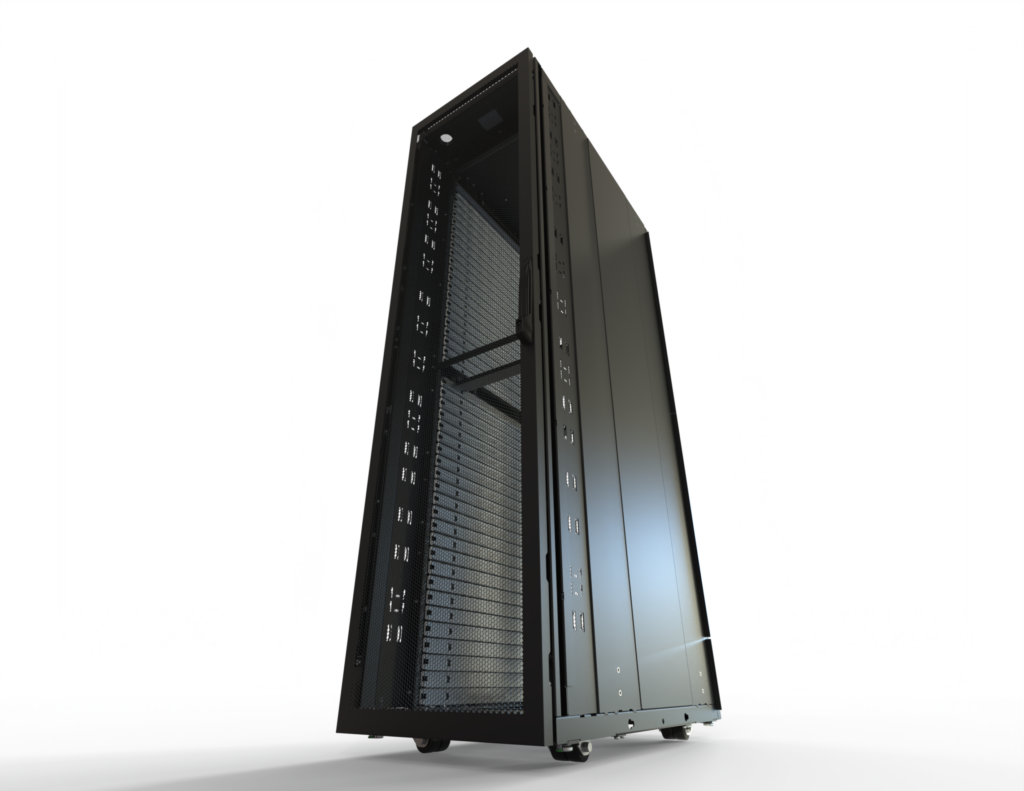

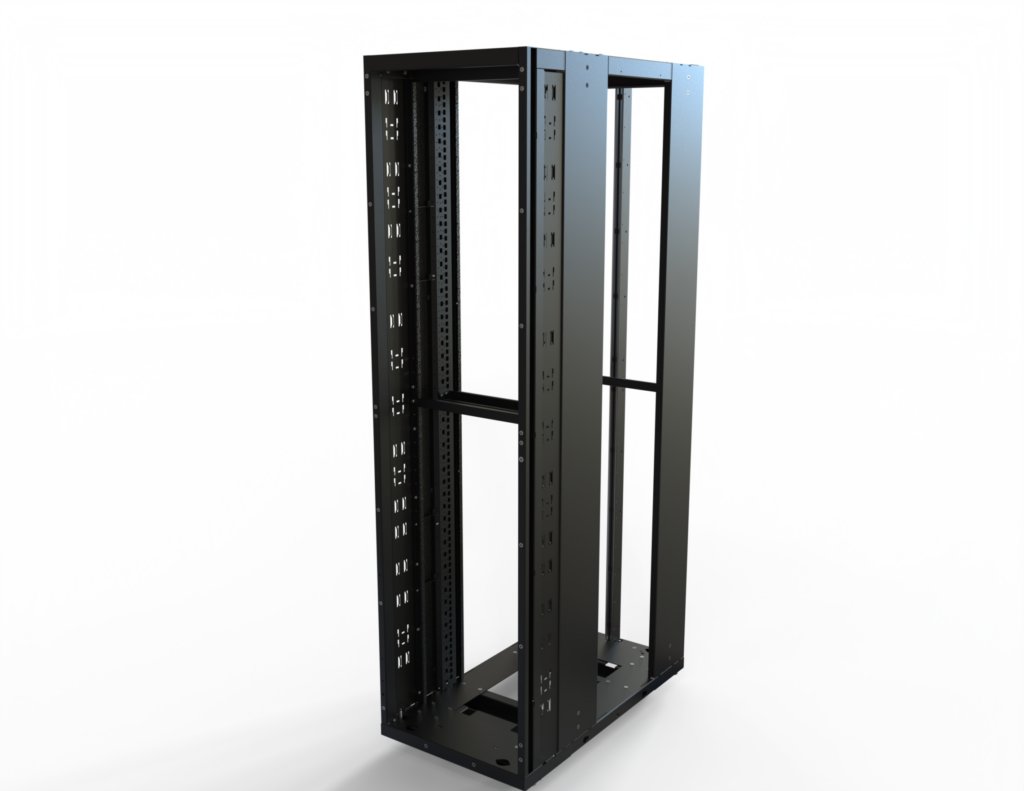

Unlock the power of next-generation data center infrastructure with Sanmina’s ORv3 rack, designed to meet the rigorous standards set forth by the Open Compute Project (OCP).
As a global market leader in electronic system enclosures, Sanmina brings unparalleled expertise and innovation to every step of the process, from initial concept to integration and final system assembly. With Sanmina’s proven track record in enclosure manufacturing and our global reach, rest assured that your data center needs are in capable hands.
Main features:
Accommodates mounting for liquid cooling manifolds to support cold plate technology and allow higher power density (30 kW per rack)
Flexible design for multiple functions
A busbar system that avoids unreliable power cord connection
Supports 21 inch OU or 19 inch RU hardware
Compatible with all Open Rack IT systems
Tool-free rack connection
Optional side panels and doors
Features:
Nominal Dimensions
– Height: 2,286 mm (90 in)– Width: 600 mm (23.62 in)
– Depth: 1,068 mm (42.05 in)
Load Rating of 1,400 kg (3,080 lbs)
Heavy Duty Casters
21-inch OU mounting
19-inch RU mounting (capable with optional mounting accessory)
Support 44 Open U and 47 RU of Equipment
DC ORv3 Busbar (48V DC up to 18 kW)
Built In Cable Management
Tool-free Mounting
Cable Pass Through on top and bottom of the rack
Flexible to adapt rack to customer needs and application under OCP compliance

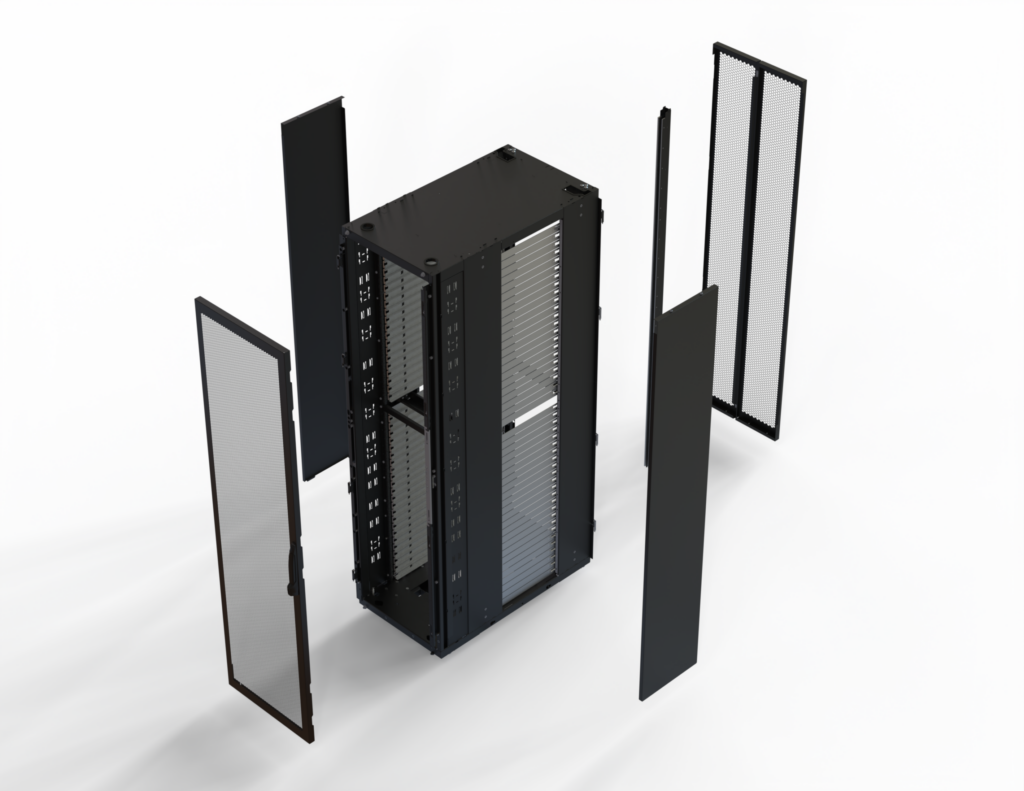

Accessories
Door Kit
Modular Side Panels Kit
Busbar aligned with OCP Specifications
IT Gear Rails
