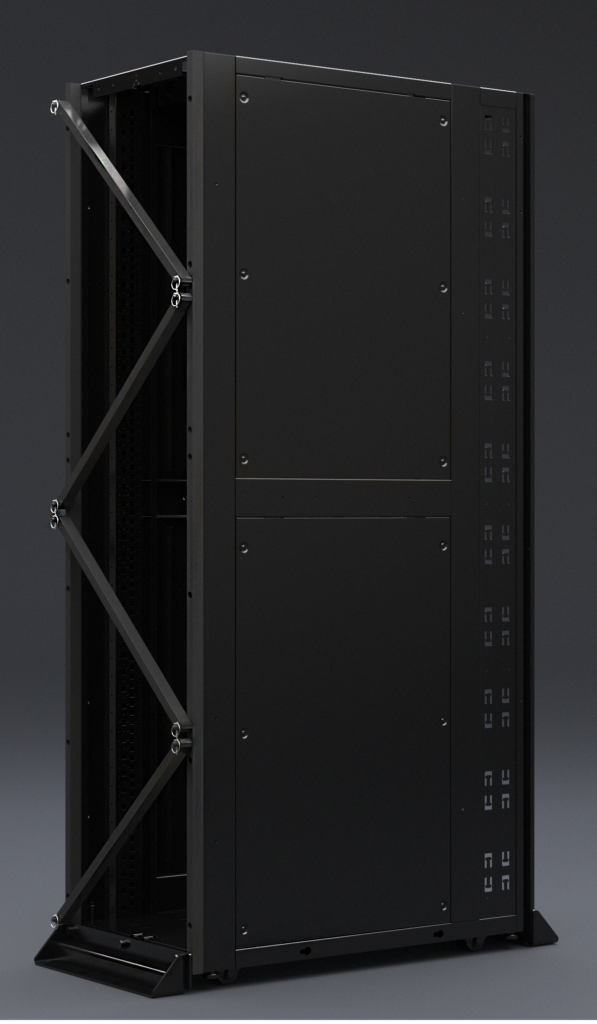

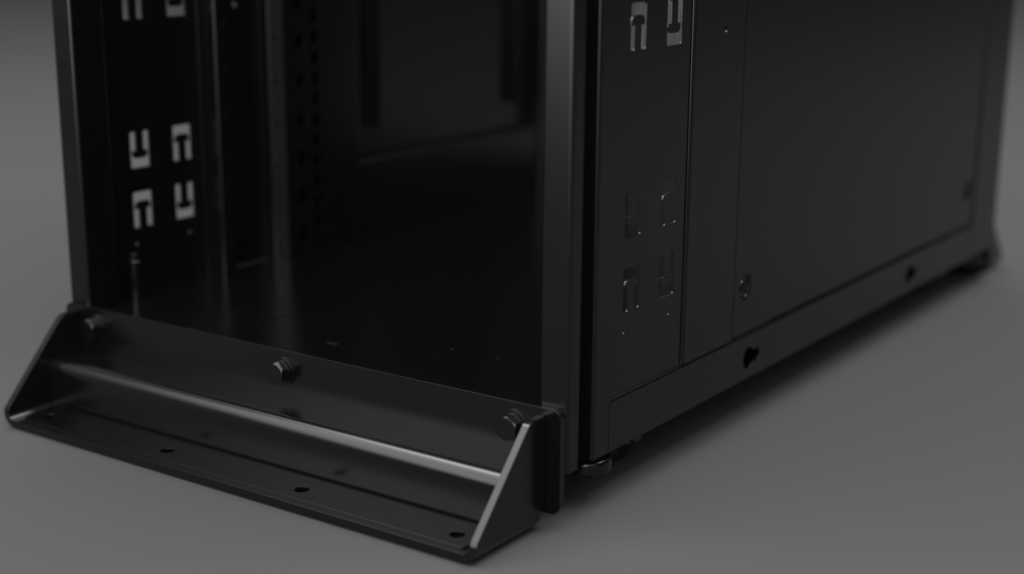

The Emcor ORV3 is designed to support 48V DC busbar power architectures with a modular, configurable platform. Integrated cable management and flexible routing options support high-density compute, storage, and accelerator deployments.
Main Features:
- Supports 48V DC busbar power architecture
- Configurable modular frame architecture for flexible system integration
- Integrated cable management with top and bottom passthrough options
- Toolfree mounting for faster installation and simplified service Specification
- Dimensions: 600 mm or 750 mm (W) × 1,068 mm (D) × 2,286 mm(H)
- Equipment Bay Width: 533 mm (21 in) Mounting Capacity: 44 OU (48 RU Equivalent)
- Maximum Load Capacity: 1,400 kg (3,080 lbs)
- Casters: Heavyduty (standard)
Available Accessories:
- Seismic Kit Single/Split/Security Door Options
- Rack Extender Shock Packaging
- Custom grounding and busbar geometry
- Trays & Shelves Filler Panels
- EIA Vertical Adapter Kits
- MGX Conversion Kits
- Busbar
- IT Rails
- Slides
- Customized Components on request
