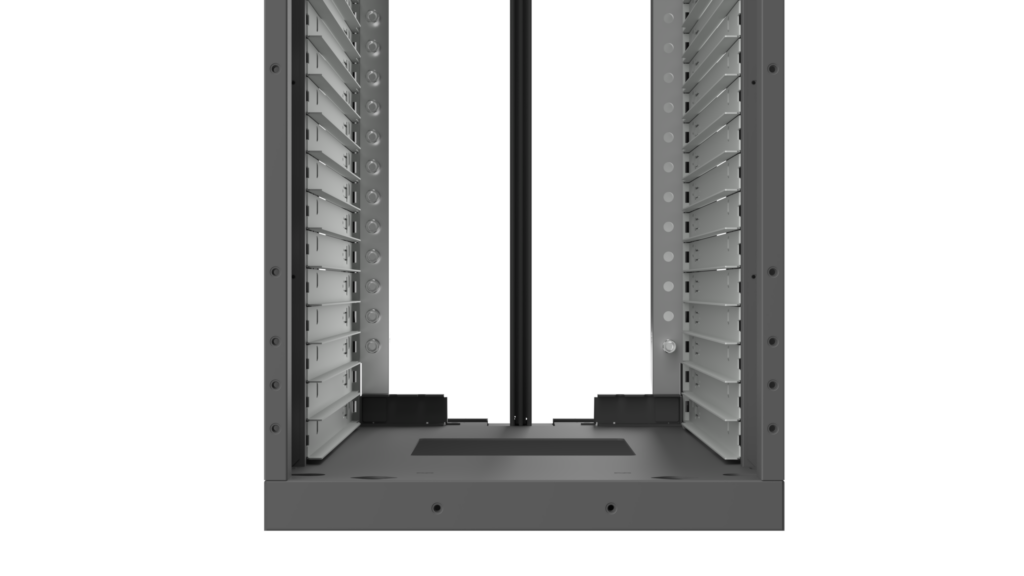

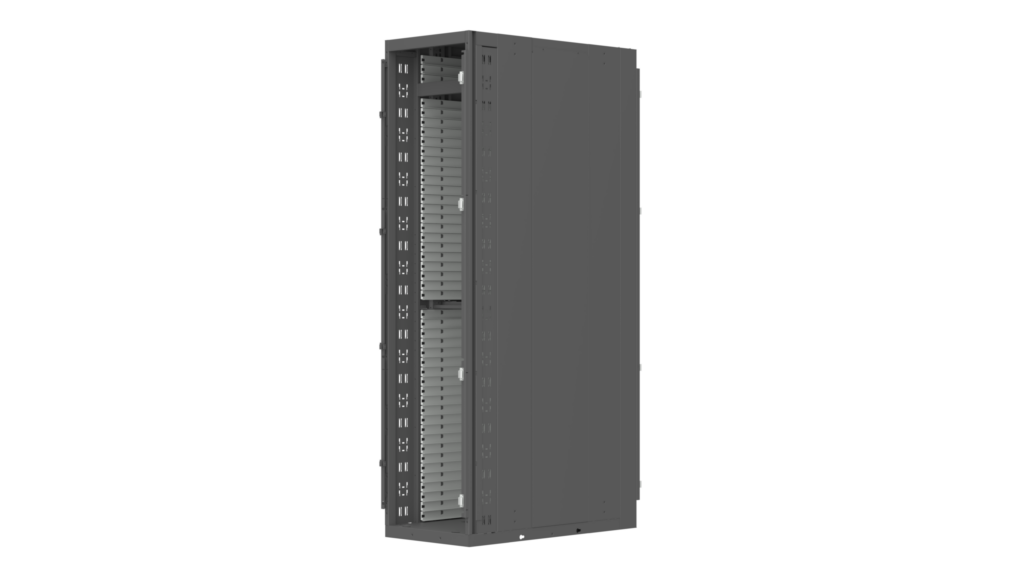

Inspired by the Open Compute Project’s Open Rack V3 (ORV3) specification, the DEFOG ORV3 Rack is designed around the core principles of openness, efficiency, and scalability.
It supports high-power AI deployments through a modular 48V DC architecture and enhanced rack-level serviceability.
With efficient 48V DC power distribution and flexible cooling integration, the DEFOG ORV3 Rack provides a robust platform for bridging traditional IT infrastructure and next-generation AI workloads.
Specification:
* Part Number – ORV3-441160
* Dimensions – W600mm x D1068mm x H2236mm + Caster 48mm
* Form Factor – 21″ Open Rack(ORV3 Inspired)
* Material / Surface Finish – Sheet steel / Powder coated
* Color – Giwa Black(EN-437K) / RoHS
* Height Units – 44OU * Load Capacity – 2000kg(UL)
* Busbar Rating – Customization available
Available Accessories:
* Manifold * DC Busbar
* Power shelf for 21” & 19″ OCP Power Supply Unit (PSU)
* IT Rails kit for 21” OCP IT Equipment
* Side Panel Kit
* Front and Rear Door Kit
* 21” to 19” Adaptor Rails for 19” Equipment
* Filler Panel – 1OU / 2OU
* Stabilizing Panel
* Customization – Available ( OU / Color / Hole / Door type etc.)
