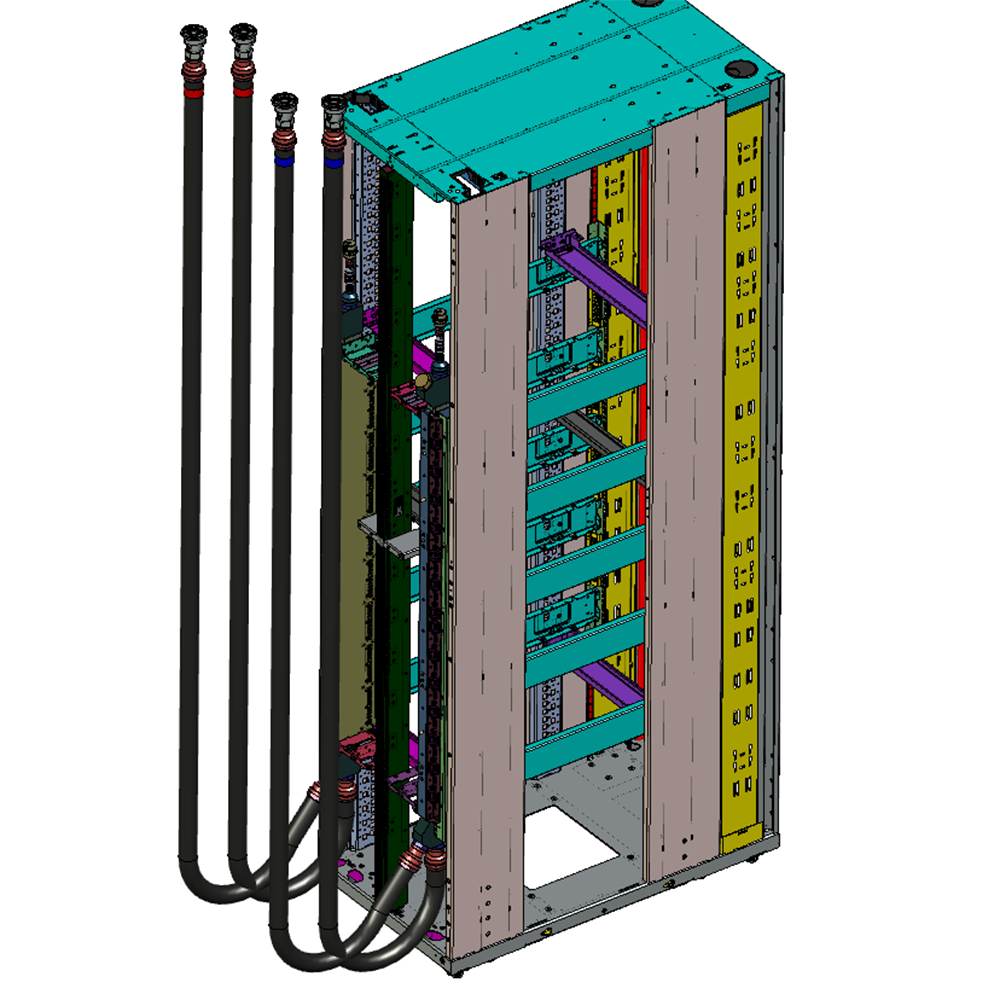

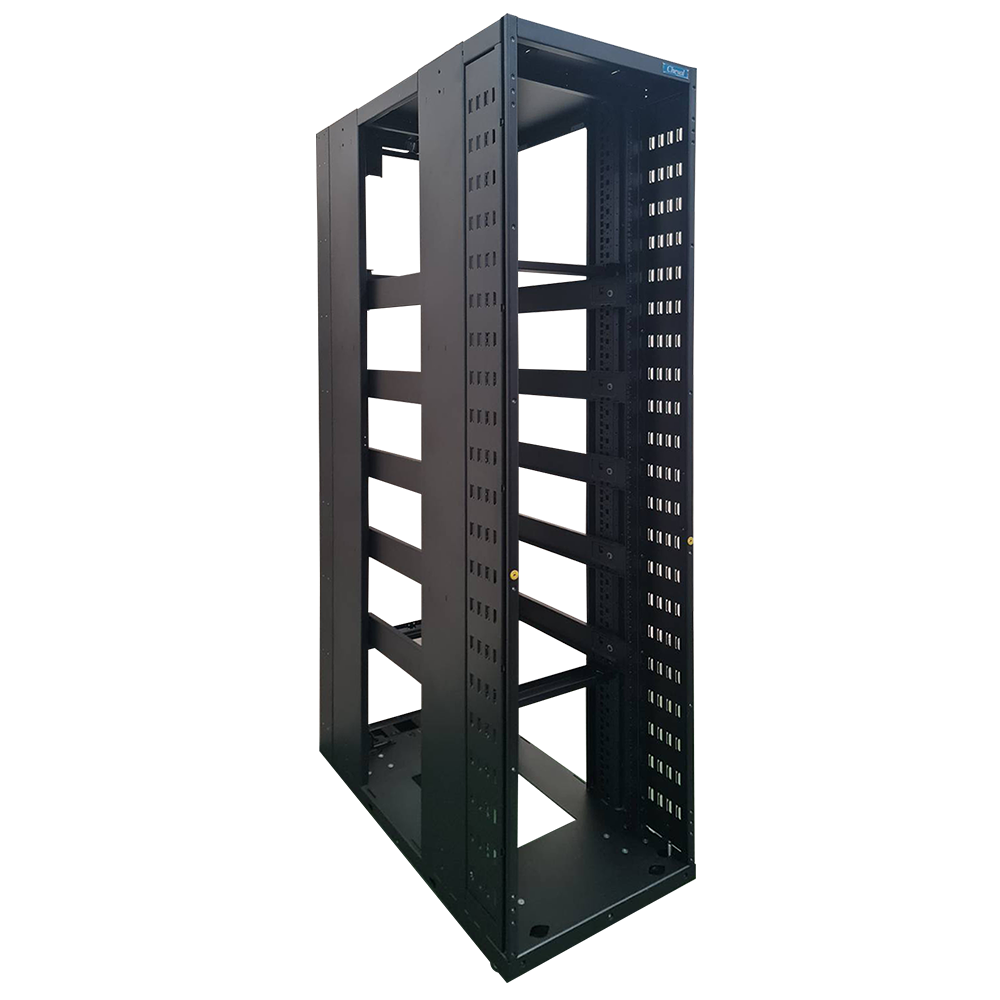

Specifically designed to support NVIDIA’s GB200 System, the MGX Rack features:
- 48 RU Rack designed for MGX ecosystem and offerings
- 600 mm wide by 1068 mm deep by 2236 mm high
- Bolt on 132 mm deep Extension frame extends overall depth to 1,200 mm.
- Blind Mate Ready for Manifolds
- Front Cabling Zone for large interconnect systems
- Top Cabling Openings enlarged
- 1,600 KG Load rated
- Door and Side Panels available
Cheval can provide NVIDIA’s MGX OCP rack platform and associated mounting kits:
| Item | Description | NVIDIA Part Number | Cheval Part Number |
|---|---|---|---|
| 1 | NVIDIA MGX Rack | NVOR3M0101 | NVOR3M0101 |
| 2 | ODM Mechanical Component GB200 NVL Leak Detection Tray, MGX Rack | 754-24972-0015-000 | CVACORV3031 |
| 3 | ODM Accessories Component GB200 NVL MGX Rack Mounting Kit for CC and Manifold | 756-24972-0005-000 | CVACORV3032 |
| 4 | MGX Rack Extension Frame 132mm Deep | NA | CVACORV3039 |
| 5 | MGS Extension Bracket 40mm Deep | NA | CVACORV3050 |
