Using our experience in knock-down designs, we have produced a knock down version of ORV3. The advantage of the knock down design is shipping efficiency, up to 80 sets per 40′ container compared to 27 for fully welded versions.
Basic Features:
- Static Load rated 1,600 kg.
- Dynamic Load rated 1,400 kg
- Knock down version estimate 80 sets per 40’
- Assembled version estimate 27 sets per 40’
- 44 OU/48 RU overall internal mounting space
- U numbers printed for easy equipment installation
- 48 VDC bus bar power architecture
- Overall foot print is 600 mm x 1068 mm
- Can customize to your specifications

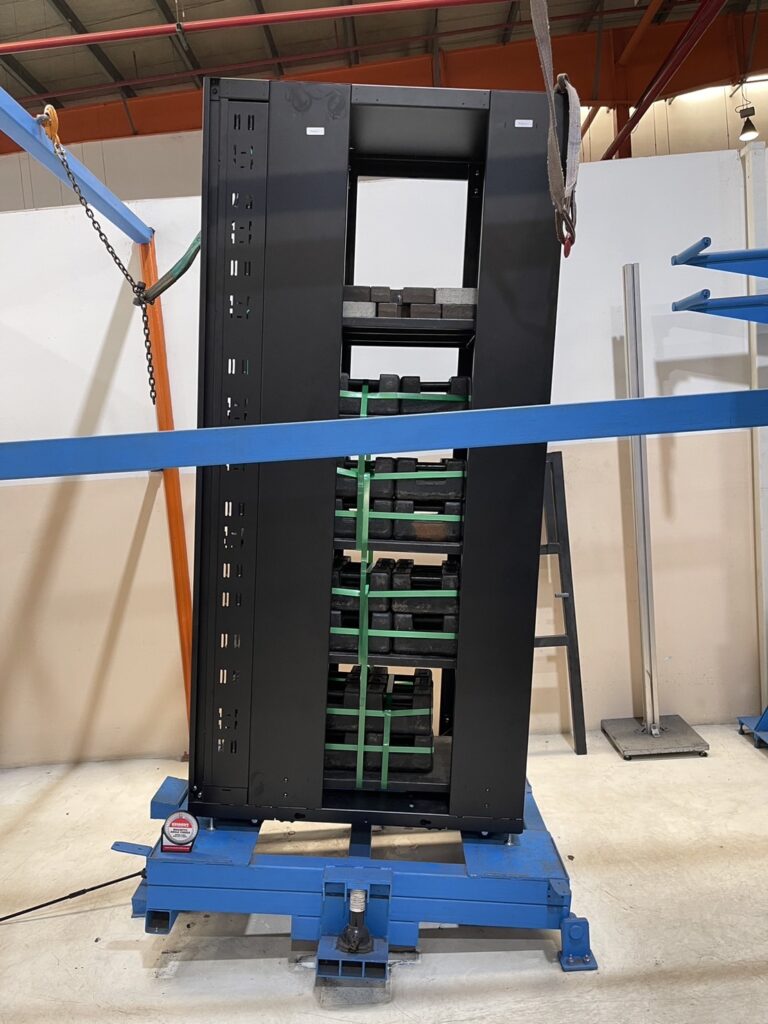

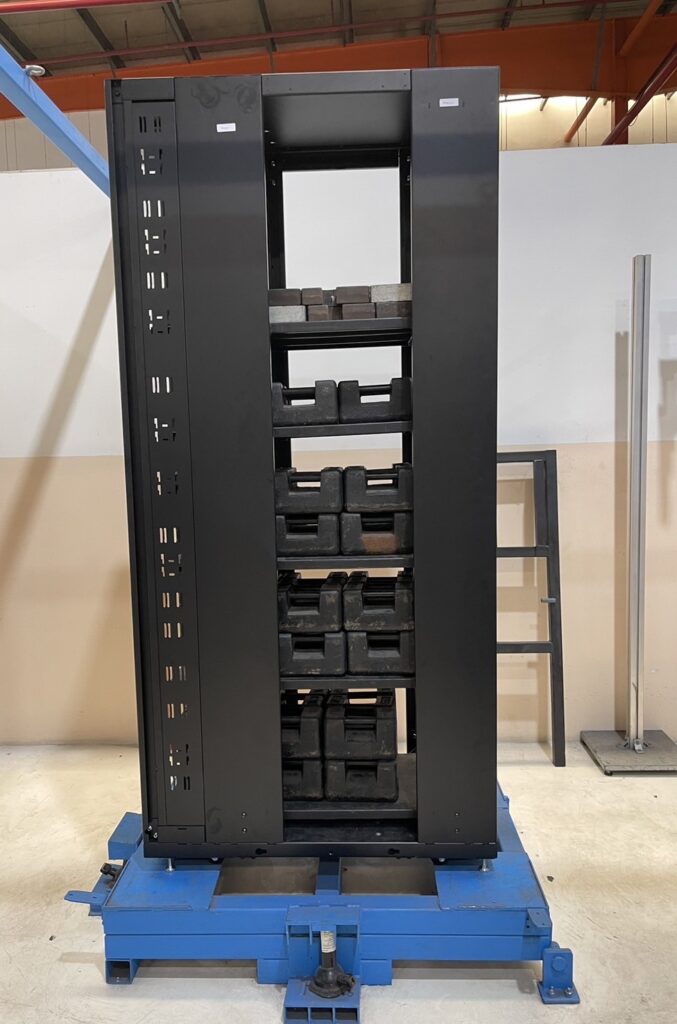

Cheval OCP ORV3 Flat Pack Tests and Results – All tests were performed in a fully loaded configuration and the mass evenly distributed throughout the volume of the rack. Apply load 1,400 kg for rolling movement and 1,600 kg for unpackaged Test.
| Test Description | Criteria | Investigation | Result |
|---|---|---|---|
| Obstacle test |
|
DUT can roll over the obstacle and no permanent damage on structure. | Pass |
| Gap Test |
|
DUT can roll over the gap and no permanent damage on structure. | Pass |
| Ramp Test |
|
DUT can traverse up and down on the ramp without permanent damage on structure. | Pass |
| Roll Off Test |
|
No permanent damage on structure and casters. | Pass |
| Rack Distance Rolling Test |
|
DUT be started to move by applied force less than 60 kgf (25,30 and 27 kgf). | Pass |
| Tilted 10 degrees Test |
|
DUT did not flip and no permanent damage on structure. | Pass |
| Leveling raised and lowered 3 cycles |
|
The Leveling of DUT can be raised and lowered the Rack 15 mm. | Pass |
| Push 250 N Test |
|
DUT did not flip and no permanent damage on structure. | Pass |
