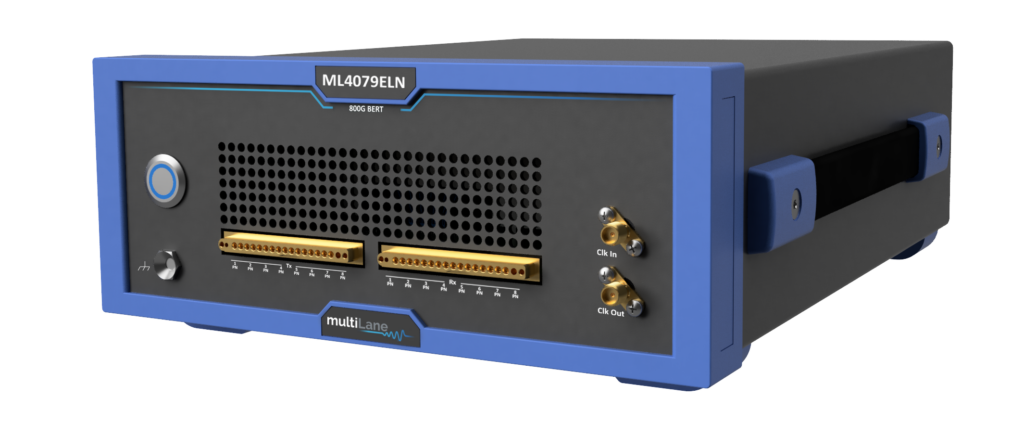

The ML4079ELN is an 8-Lane 112Gbps BERT ideal for OCP signal integrity applications including Layer-1 PCIe-Gen 5, 6, and 7, automotive, transceiver and data center interconnect testing.
The ML4079ELN features a wide range of line rate coverage, Ethernet FEC, 34dB+ SerDes equalization, and built-in additive white gaussian noise injection, providing a unified platform for testing up to 8×66 GBaud.
Applications:
- Comprehensive tessing of passive interconnects like DACs and Backplanes with 34dB+ Nyquist loss
- Characterization of Active Electrical Cables and Linear redrive interconnects like Liner Pluggable Optics and Active Copper Cable
Features:
- 8-Lane Programmable Pattern Generator and Error Detector
- Data Rates: 1-1.5Gbps; 2.55-5.9Gbps; 7.3-11Gbps; 24-32Gbps and 41-66Gbps NRZ and 21.25-21.75GBaud; 26.5625-36GBaud and 44-66GBaud PAM4
- RX-Sie FFE, DFE, and CTLE Equalization
- Up to 800 mVpp Tx Amplitude Swing
- Supports Gray coding
- Built-in noise and error injection
- Real Hardware FEC
- ThunderBERT Rapid GUI Support
