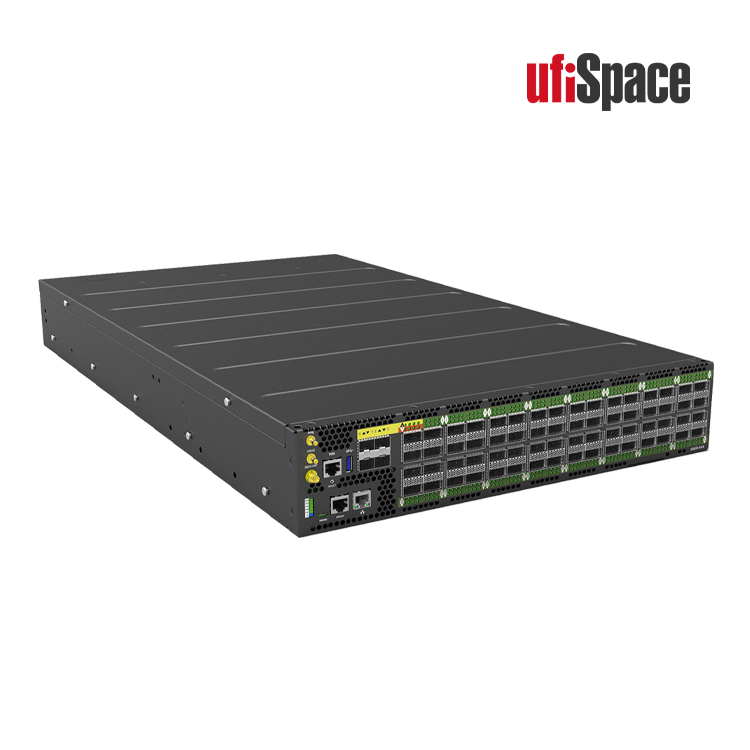

UfiSpace – S9600-64X 64-Port, 100G Open Aggregation Router

The UfiSpace S9600-64X Open Aggregation Router, is a high density and multi-function white box aggregation routing platform. It utilizes the Broadcom Qumran2c merchant silicon and Intel Skylake processor to enable high capacity, better power efficiency and more buffering within a compact 2RU router.

The S9600-64X provides 8GB deep buffer, a switching capacity of up to 4.8Tbs, and fully supports SyncE and IEEE 1588v2 timing profiles. Specializing in 5G Time Sensitive Networking (TSN) applications, the S9600-64X complies to the IEEE 802.1CM and can act as an Edge Grand Master (GM) clock.

Furthermore, it can provide Class C timing accuracy using UfiSpace’s in-house designed 5G timing module. It features 64 high speed 100G ports with an additional 4x25G ports that is a break out of port #0.

The S9600-64X platform can enable multiple application architectures required for high traffic loading in a 5G mobile Ethernet network. Due to its versatility, the S9600-64X can be positioned in different parts of the network to perform aggregation, such as in the backhaul to aggregate BBU pooling or even as a Broadband Network Gateway (BNG) within the central office.

Features:

• Utilizes UfiSpace timing module for Class C accuracy
• Supports SyncE and IEEE 1588v2 (T-GM, T-BC/OC, T-TC, T-TSC)
• Integrated Stratum 3E OCXO with optional hold over performances
• Rich timing input/output interfaces: ToD, 1PPS and 10MHz
• Integrated GNSS receiver with passive or active antenna support
• 8GB deep buffering
• BMC for remote monitoring and management

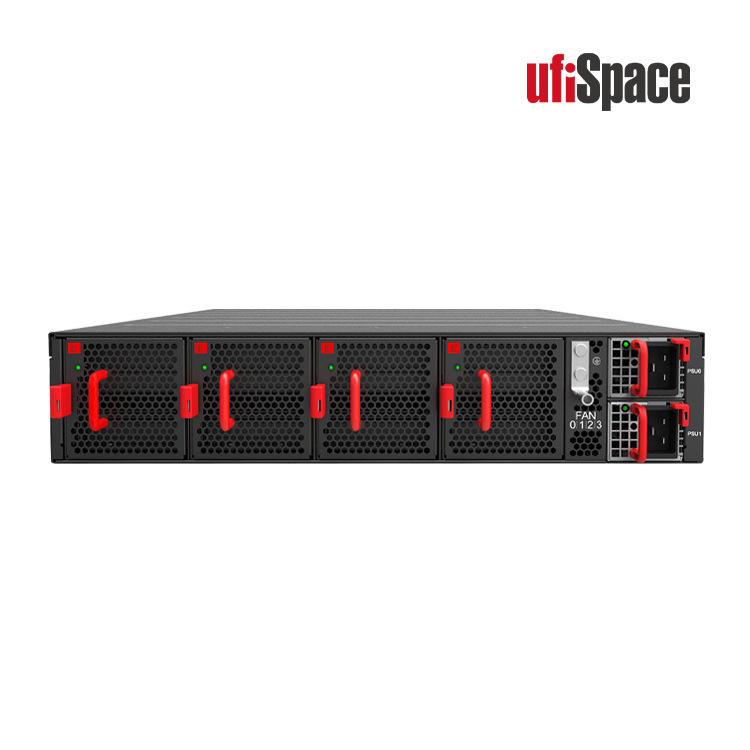

• 2 hot swappable power supplies with 1+1 redundancy support
• 4 hot swappable fan modules with 3+1 redundancy support
• 2 RU compact design, suitable for standard 19″ racks

Specifications:

Physical

• Processor:  Intel Skylake-D 8-Core @ 1.9GHz
• Memory:  32GB DDR4
• Storage: 128GB SSD
• ASIC: Broadcom Qumran2c BCM88820
• Chassis: 2RU, 436W x 762D x 87.7H mm (17.17″ x 30″ x 3.45″)
• Weight: 19.15 kg (42.21 lbs)
• Redundancy:
  • Hot swappable, 1+1 redundant PSU
  • Hot swappable, 3+1 redundant fans

Environmental

• Power supply:
  • AC input: 200 to 240V, 10A
  • DC input: -40 to -72V, 50A
• Typical power: 510 Watts (no transceiver)
• Operating Specifications:
  • Operating temperature: 0°C to 45°C (32°F to 113°F)
  • Operating humidity: 5% to 85% (RH), non-condensing
• Non-Operating Specifications:
  • Storage temperature: –40°C to 70°C (–40°F to 158°F)
  • Storage humidity: 5% to 93% (RH), non-condensing
