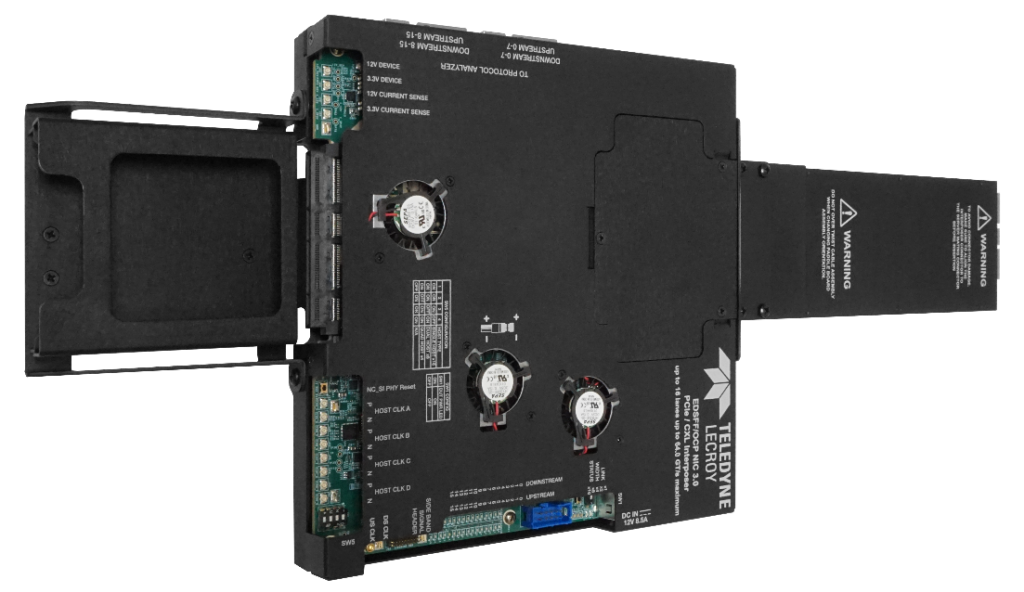

The PCIe 6.0 OCP NIC 3.0 Interposer allows users to connect a Teledyne LeCroy PCIe protocol analyzer between an OCP NIC 3.0 device and an OCP Server System to monitor, capture, record and analyze protocol traffic.
The interposer supports data rates of 2.5 GT/s, 5.0 GT/s, 8.0 GT/s, 16.0 ,32 GT/s, 64 GT/s side band signals such as PERST#, WAKE# and SMBus (SMBCLK, SMBDAT).
The PCIe 6.0 OCP NIC 3.0 Interposer supports link widths up to x16 and single/multi-hosted configurations.
