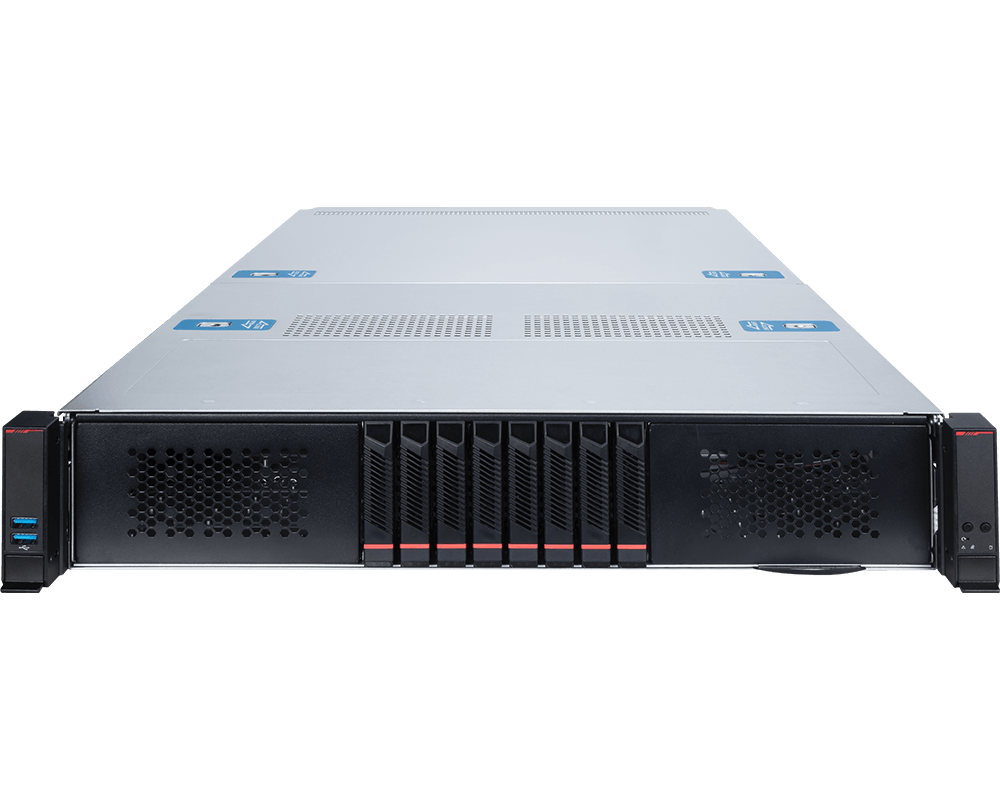

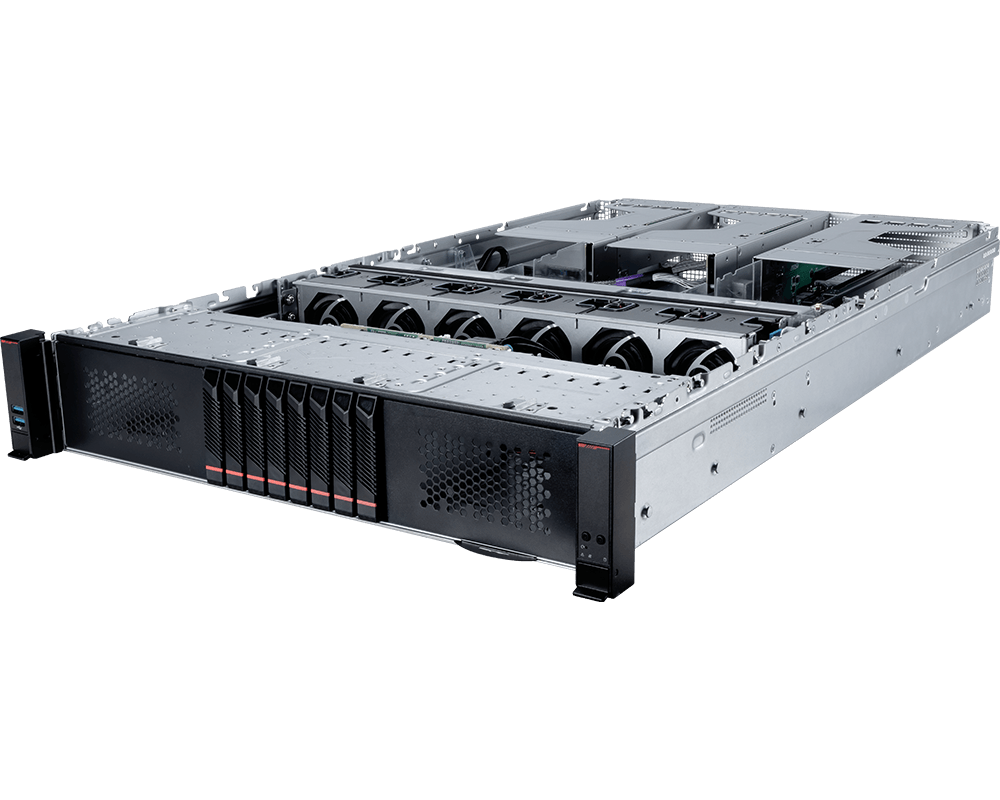

The CX270-S5062 (S5062X270RAU8 and S5062X270RAU24) Series Enterprise Servers support dual Intel® Xeon® 6500/6700-series processors and offer up to 24 U.2 NVMe drive bays. Designed with a DC-MHS architecture, these servers provide maximum memory capacity and advanced PCIe 5.0 expansion capabilities, ensuring top-tier performance and scalability for enterprise applications.
- 2U (DC-MHS architecture)
- Dual Intel® Xeon® 6700 series processors, TDP up to 350W
- (32) DDR5 RDIMM, 8 channels per CPU(2DPC), up to 6400MT/s(1DPC) and 5200MT/s(2DPC)
- (8) or (24) Front hot-swap 2.5″ U.2 PCIe 5.0 x4 NVMe drive bays
- (2) Rear hot-swap E1.S 9.5mm PCIe 5.0 x4 NVMe drive bays
- (2) 2280/22110 PCIe 5.0 x2 NVMe M.2 ports
- Up to (6) PCIe 5.0 x16 expansion slots
- (1) PCIe 5.0 x16 OCP3 NIC Mezzanine slot (NCSI supported)
- (1) 1000Base-T Dedicated Server Management port with:
- ASPEED AST2600 with IPMI 2.0 & DMTF Redfish Support
- Dual BIOS & BMC
- TPM2.0 and Hardware Root of Trust module are supported as optional
