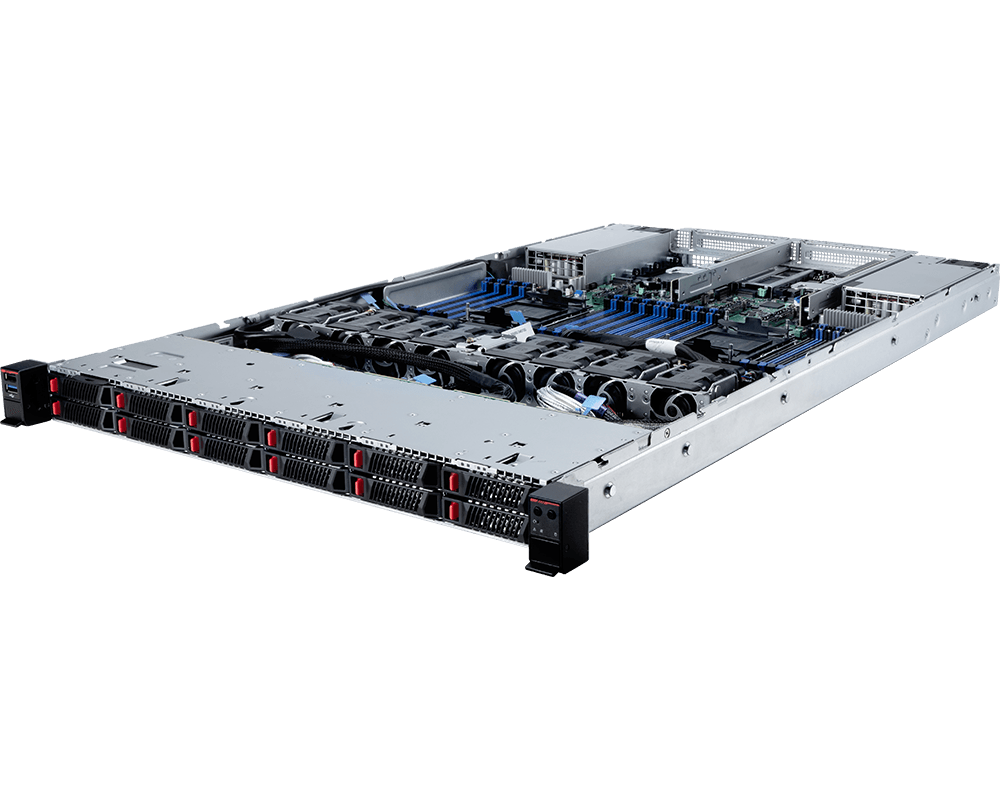

CX170-S5062 Series Enterprise Servers featuring support dual Intel® Xeon® 6500/6700 series processors, with up to 12 U.2 NVMe drive bays and maximum memory capability and PCIe Gen 5.0 support based on DC-MHS Architecture.
- 1U (DC-MHS architecture)
- Dual Intel® Xeon® 6700 series processors, TDP up to 350W
- (32) DDR5 RDIMM, 8 channels per CPU(2DPC), up to 6400MT/s(1DPC) and 5200MT/s(2DPC)
- (12) Front hot-swap 2.5″ U.2 PCIe 5.0 x4 NVMe drive bays

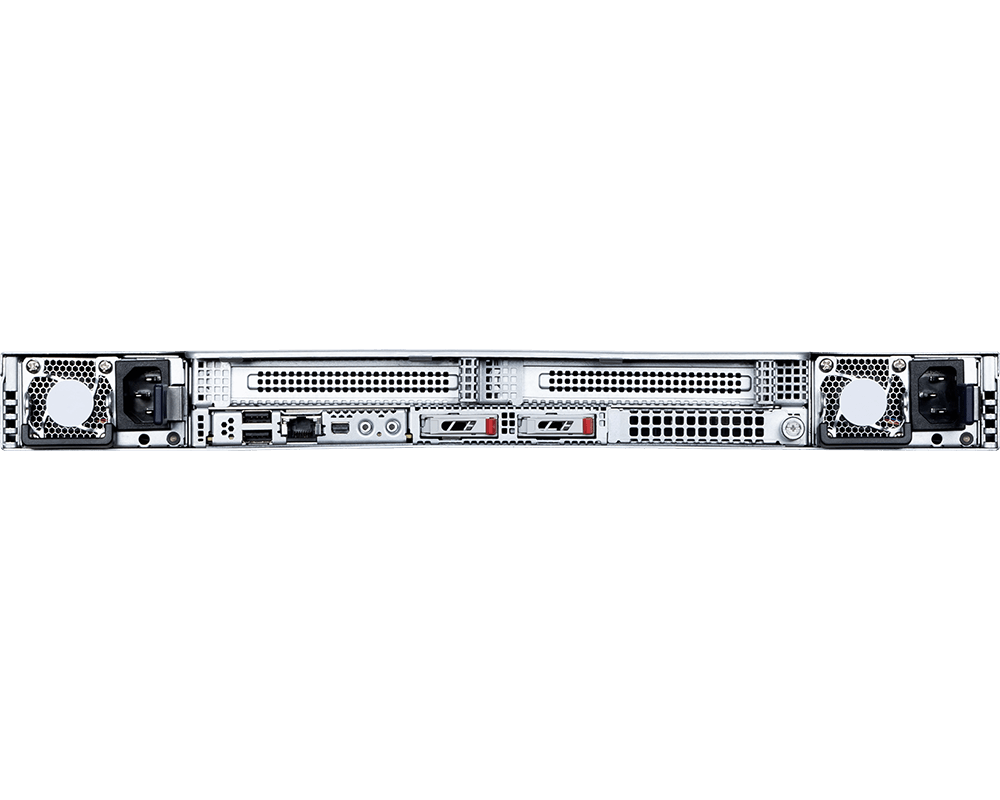

- (2) Rear hot-swap E1.S 9.5mm PCIe 5.0 x4 NVMe drive bays
- (2) 2280/22110 PCIe 5.0 x2 NVMe M.2 ports
- (2) PCIe 5.0 x16 expansion slots
- (1) PCIe 5.0 x16 OCP3 NIC Mezzanine Slot (NCSI supported)
- (1) 1000Base-T Dedicated Server Management Port with:
- ASPEED AST2600 with IPMI 2.0 & DMTF Redfish Support
- Dual BIOS & BMC
- TPM2.0 and Hardware Root of Trust module are supported as optional
