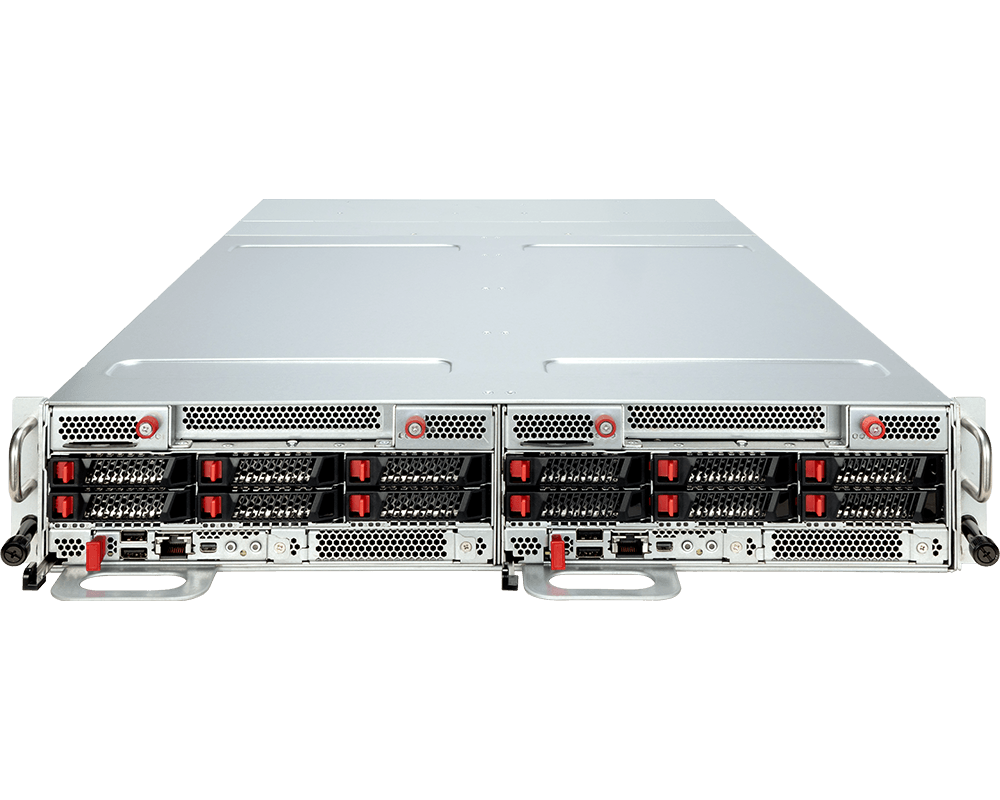

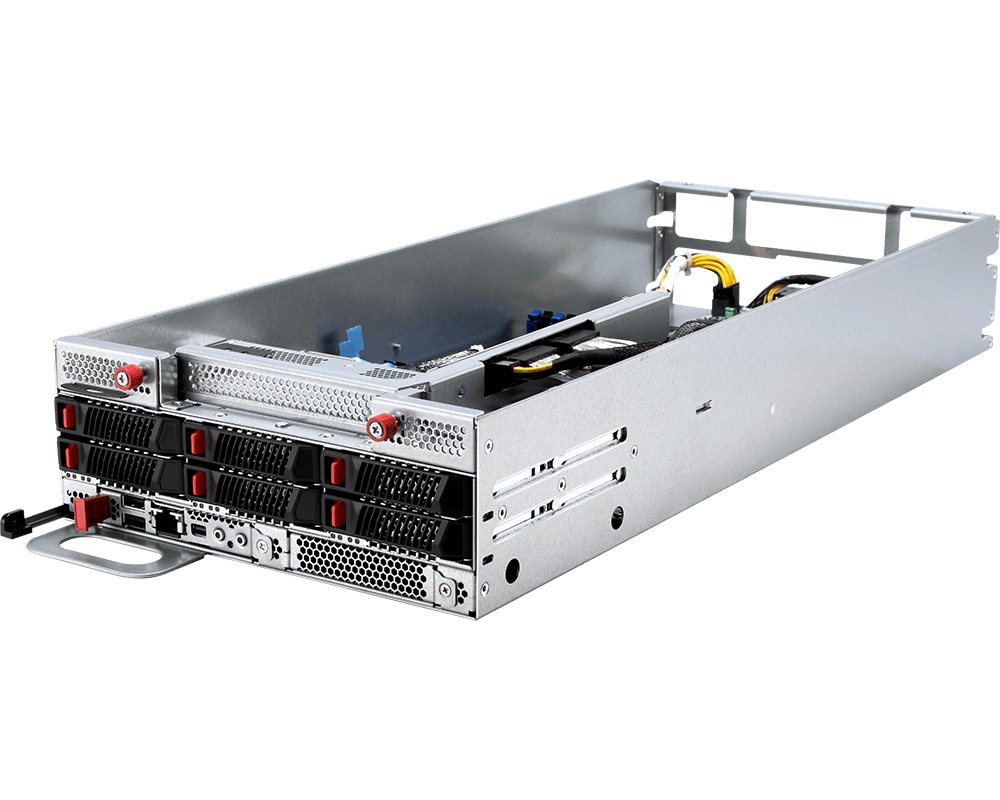

The CD270-S3061-X2 Series Core Compute server is powered by Intel® Xeon® 6500/6700 series processors. It features advanced airflow design and a large 2U standard Extended Volume Air Cooling (EVAC) CPU heatsink, optimized to support maximum CPU TDP while significantly reducing fan power consumption.
- 2U2N (DC-MHS architecture)
- Single Intel® Xeon® 6500/6700 series processors, TDP up to 350W, per node
- (16) DDR5 RDIMM, 8 channels(2DPC), up to 6400MT/s, per node
- (6) Front hot-swap 2.5″ U.2 PCIe 5.0 x4 NVMe drive bays per node
- (2) 2280/22110 PCIe 5.0 x2 NVMe M.2 ports per node
- (1) FHHL PCIe 5.0 x16 slot per node
- (1) 1000Base-T Dedicated Server Management Port per node with:
- ASPEED AST2600 with IPMI 2.0 & DMTF Redfish Support
- Dual BIOS & BMC
- TPM2.0 and Hardware Root of Trust module are supported as optional
