Edgecore Networks 16 x 10G SFP+, 8 x 25G SFP28 and 2 x 100G QSFP28 Access ONIE Router, Empowered by IP Infusion OcNOS Service Provider, Broadcom Qumran-AX, Intel®️ Pentium®️ D-1519 CPU, 2 x AC or 2 x DC PSU, F- Front-to-Back Airflow

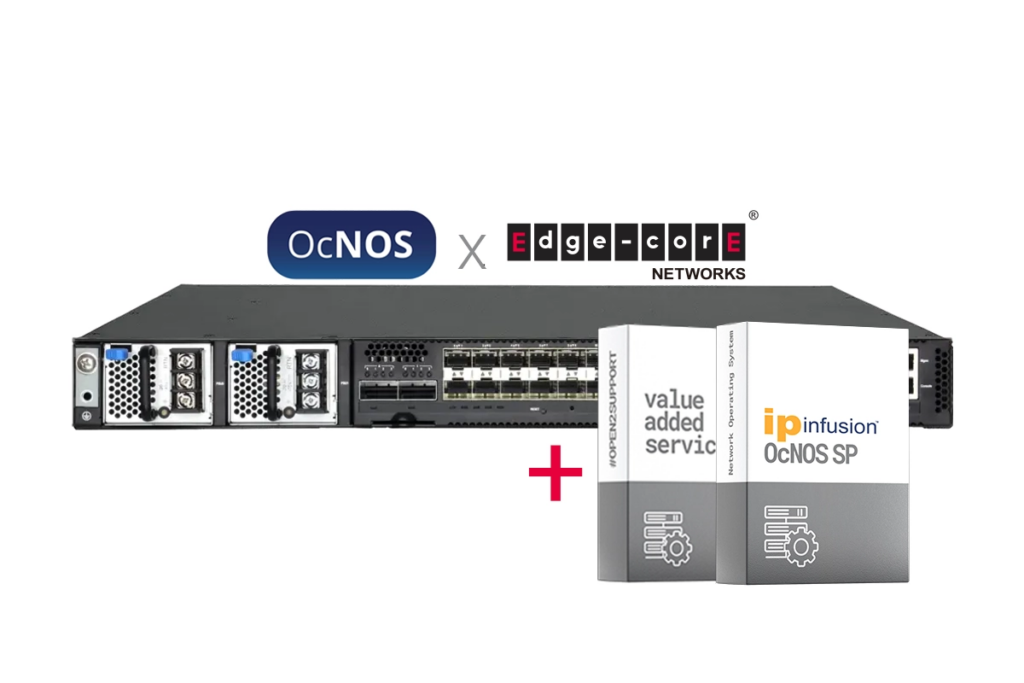

This bundle features the Edgecore CSR320 AS7316-26XB, a high-performance switch designed for demanding network environments. It comes with 2xAC or 2x-48V Power Supply Units (PSUs) and supports Front-to-Back airflow configuration, ensuring optimal cooling and reliability for continuous operation.
Pre-loaded with IP Infusion OcNOS Service Provider, this package delivers a robust, scalable, and fully open-source Network Operating System (NOS). It enhances the switch’s capabilities, offering advanced networking features and the flexibility for customization to meet specific network requirements.
The bundle also includes a comprehensive 1, 3, or 5-year hardware warranty and software support, providing peace of mind and assistance.
The Edgecore CSR320 is an open-design cell site gateway platform that offers a mix of 1/10 G, 25 G, and 100 G interfaces, leveraging merchant silicon and an x86 processor for optimized performance in service provider access and aggregation networks. Designed for durability, the CSR320 operates within a wide temperature range from -40℃ to 65℃. It includes redundant, hot-swappable power modules and redundant 4+1 fans, ensuring high availability and easy maintenance for mission-critical applications, making it an excellent choice for current LTE and emerging 5G mobile backhaul networks.
The CSR320 integrates industry-leading network timing and synchronization features, including a GNSS antenna interface, making it suitable for both LTE and 5G mobile backhaul solutions. It comes pre-installed with the Open Network Install Environment (ONIE), allowing users the flexibility to choose their preferred Network Operating System (NOS) for integration with their applications.
