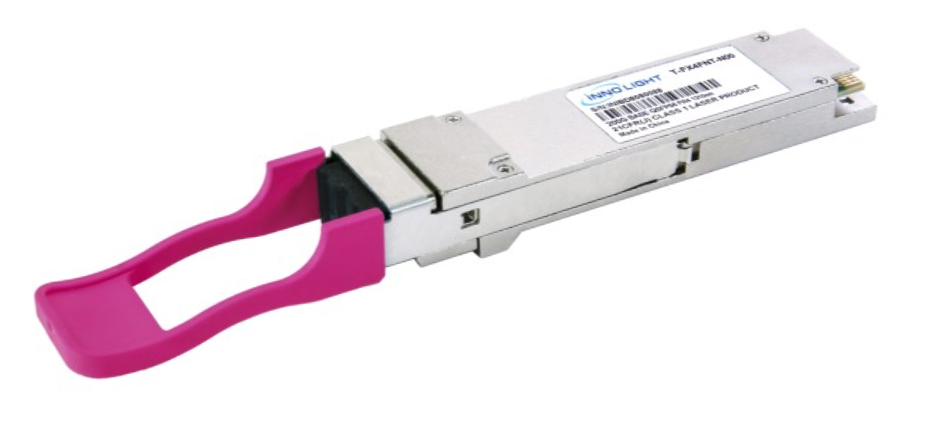

Introducing a breakthrough 200Gb/s transceiver module, exclusively designed for high-performance optical communication applications up to 2km. The cutting-edge design adheres to the esteemed IEEE802.3bs 200GBASE-FR4 standard. The module employs advanced technology to skillfully convert 4 input channels (ch) of 50Gb/s (PAM4) electrical data into 4 CWDM optical signals, cleverly multiplexing them into a single channel for seamless 200Gb/s (PAM4) optical transmission. Likewise, on the receiver side, the module effortlessly de-multiplexes a 200Gb/s (PAM4) input into 4 CWDM channels signals, seamlessly generating 4-channel output electrical data.
The module boasts central wavelengths of 1271, 1291, 1311, and 1331 nm for the 4 CWDM channels, impeccably aligning with the CWDM wavelength grid defined in ITU-T G.694.2. To enhance performance and minimize optical dispersion in long-haul systems, the module exclusively utilizes single-mode fiber (SMF). Host FEC (Forward Error Correction) is thoughtfully incorporated to ensure reliable support for up to 2km fiber transmission.
Designed to perfection, the product aligns with the form factor, optical/electrical connection, and digital diagnostic interface outlined in the prestigious QSFP56 Multi-Source Agreement (MSA). Moreover, it is engineered to withstand the most demanding external operating conditions, including a wide temperature range, humidity fluctuations, and protection against EMI interference.
Key Features:
- IEEE802.3bs 200GBASE-FR4 compliant
- QSFP56 MSA compliant
- 4 CWDM lanes MUX/DEMUX design
- Supports an impressive 212.5Gb/s aggregate bit rate
- Reliable up to 3 km transmission on single-mode fiber (SMF) with FEC
- Operating case temperature range: 15 to 65°C
- 200GAUI-4 electrical interface
- Compliant with the 200G FR4 OCP Specification
- Maximum power consumption of 6.5W
- Convenient LC duplex connector
- RoHS compliant
Ideal Applications:
- Data Center Interconnect
- 200G Ethernet
- Enterprise Networking
