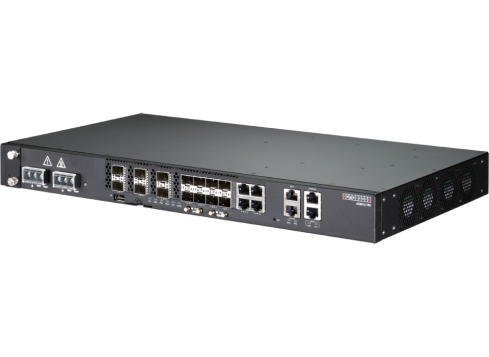

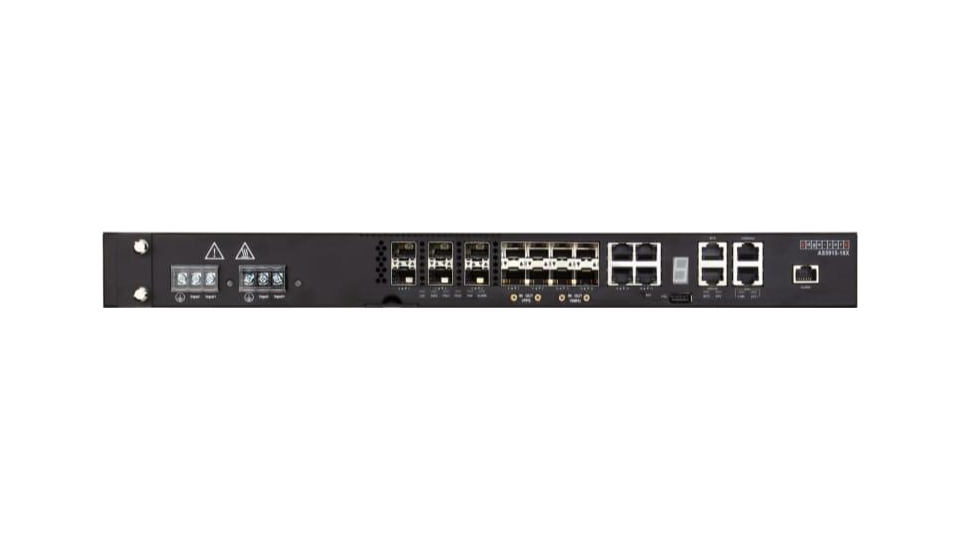

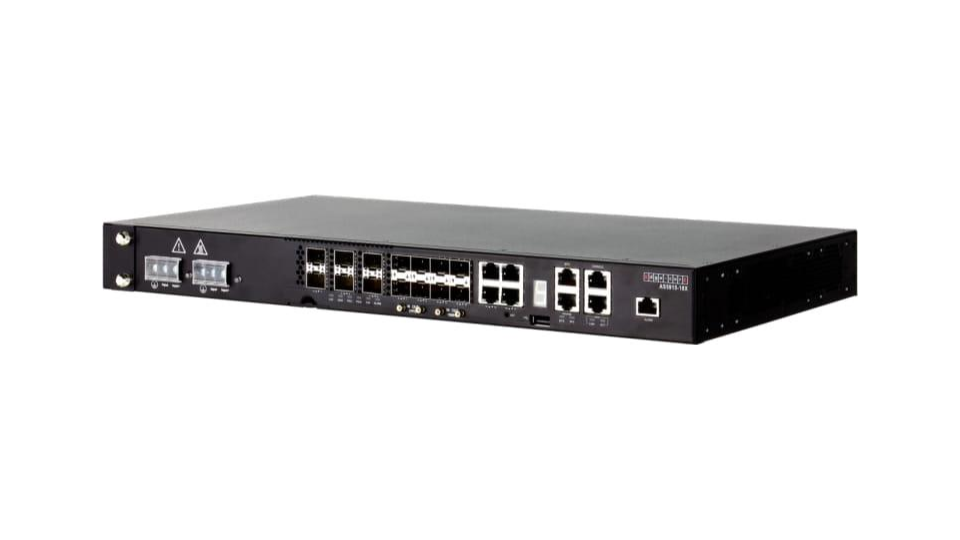

The Edgecore AS5915-18X is an open cell site gateway platform that provides a combination of 1GE and 10 GE interfaces utilizing merchant silicon and an x86 processor to optimize performance for mobile networks. The AS5915-18X is a hardened design, able to operate at a wide operational temperature range from -40℃ to 70℃, with built-in power boards and fans in a compact size that provides high availability for mission-critical applications. The AS5915-18X also supports network timing and synchronization in hardware that makes it ideal for current LTE and emerging 5G mobile backhaul network solutions.
The AS5915-18X is installed with ONIE (Open Network Install Environment) that provides freedom of choice for the preferred NOS (Network Operating System) integration with user applications.
Key Features and Benefits

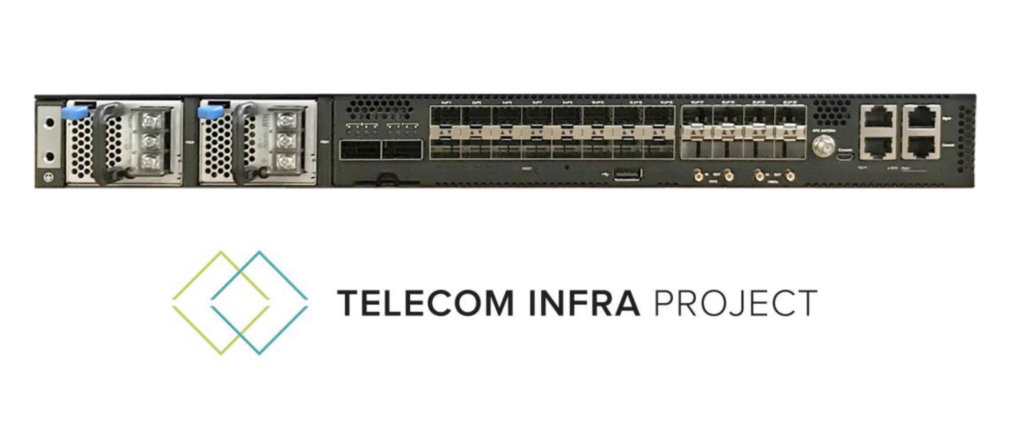

- Comply with TIP (Telecom Infra Project) OOPT (Open Optical and Packet Transport) DCSG Specifications.

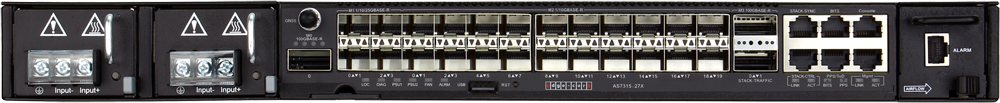

- 6 x 1G/10G SFP+, 8 x 1G SFP and 4 x 1G RJ-45 fixed ports.
- Support IEEE1588v2 and SyncE functions in hardware.
- Full line-rate Layer 2 or Layer 3 forwarding of 64 Gbps.
- Compact 1RU. Harden design with 240 mm in depth.
- Supports side-to-side airflow SKU ( with Air Filter option).
- Load sharing, redundant AC/48VDC PSUs.
- Built-in redundant fan modules.
- Management: Ethernet and console RJ-45 ports
