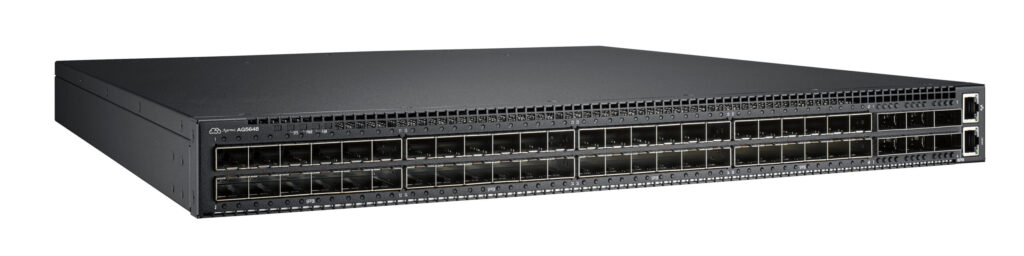

The AG5648V1 represents the next-generation leaf switch, designed to cater to the requirements of Data Center Networks and Enterprise network deployments. With cutting-edge 100G technology (4x25G Serdes), it offers an impressive configuration of 48-port 25G SFP28 and 6-port 100G QSFP28, all conveniently packed into a compact 1RU form factor. This upgrade delivers a significant 2.5 times speed boost compared to current 10G leaf switches. Moreover, the 48 ports of 25G are backward compatible with 10G, while the 100G uplink presents dual-speed options of 40G and 100G. The switch’s total I/O bandwidth is an impressive 1.8T, marking a substantial 2.5 times capacity performance improvement over current 10G downlink and 40G uplink switches (720G). Additionally, customers can enjoy the choice of Intel 1.7GHz x86 Dual-Core or 2.4GHz x86 Quad-Core CPU modules, providing them with the desirable flexibility in CPU selection.
Features
- External Serial RS232 port (RJ45 type)
- Support one USB ports for USB-A type
- 48 25Gbps SFP28 ports and 6 100Gbps QSFP28 ports in front
- The 25G port support 10G/25G speeds
- The 100G port support 10G/25G speed by FAN out cable, the port also supports 40G QSFP28 transceiver
- Front panel Management port. (RJ45 type)
- Front panel LED display for System, Locator, and FAN and power status indicates.
- On board high performance CPU system with high density memory, Intel Rangeley C2538/4GB DDR3 SDRAM
- Temperature monitoring. (TMP75).
- Backup BIOS
- Software readable thermal monitor
- RTC time clock support

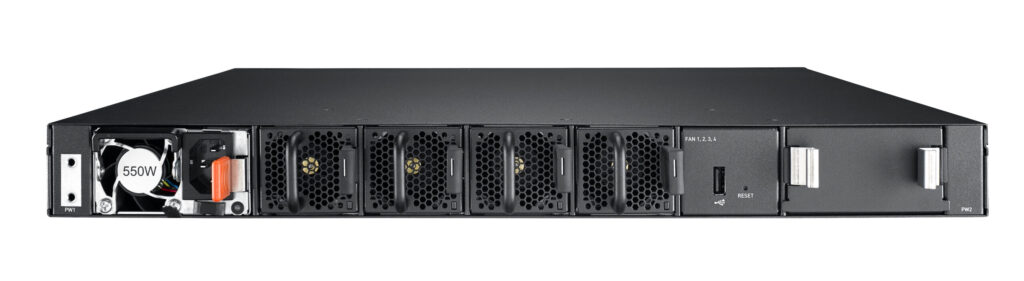

- Hot plugging redundant power supply
- Current monitoring for Power management
- FAN removable and monitoring
- Standard 1U chassis high
