The APS Networks BF6064X-T is the world´s first fully programmable 100GbE Barefoot Tofino-based network switch with built-in time synchronization (1588v2), supported speeds of 10/25/40/50/100GbE, a powerful Intel D-1548 CPU, 128GB SSD and 32GB RAM and dedicated control plane ports. AC & DC port-to-power and power-to-port options and OCP DC Pass-Through-Module available.

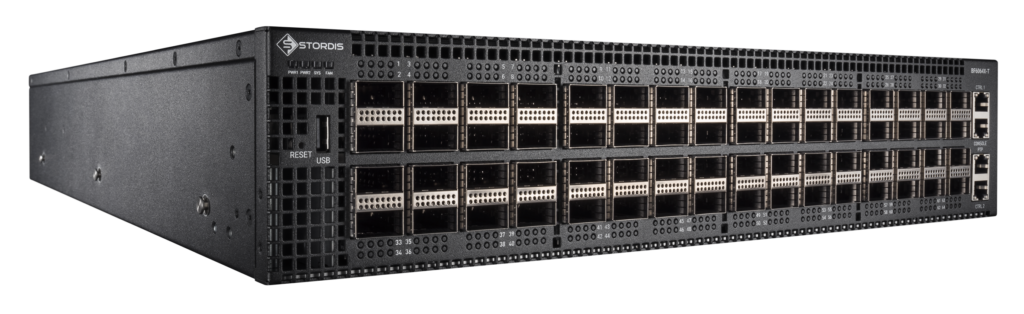

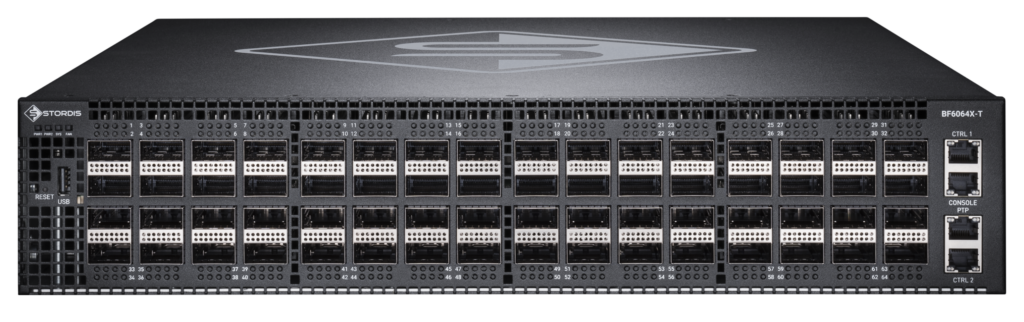

The BF6064X-T represents a cutting-edge, high-performance switch engineered for Data Center networks, boasting impressive density and capabilities. With a compact 2RU form factor, it houses an impressive array of Sixty-Five 100GbE QSFP28 ports, making it ideal for 100GE applications.
Beyond its rich bandwidth, the BF6064X-T offers a comprehensive set of layer 2 and layer 3 features, including SNMP, Spanning Tree, VLAN, QinQ, Trunk, QoS, RIP, OSPF, IGMP, DVMRP, PIM-DM, PIM-SM, Access Control, and more. Tailored for Data Center networks, this product also incorporates advanced features such as MPLS, TRILL, PFC, VEPA, QCN, VxLAN, and NVGRE, precisely meeting the high-performance, high-speed, and virtualization requirements of modern Data Centers.
At the heart of the BF6064X-T lies the powerful Intel® Xeon® Processor Broadwell-DE D1548 from the D-1500 product family. Moreover, it incorporates an Integrated Remote Management Processor-AST2520, serving as a reliable baseboard management controller (BMC). This combination delivers an exceptional solution for Data Center networks, paving the way for top-notch performance and meeting the evolving demands of modern Data Centers.
Specifications:
• Boasts an impressive 6.4Tbps interface bandwidth
• Supports Jumbo Frame up to 9KB for efficient data handling
• Accommodates up to 256 ports, offering extensive connectivity
• Equipped with a powerful 12-Stage Match-Action-Unit (MAU) pipeline operating up to 1.1GHz for exceptional performance
• Features Alternate Store-Forward (ASF) mode, with the option for Cut-through to minimize latency
• Clear power supply LED and FAN status LED indication for easy monitoring
• Enhanced visibility with extensive system LED and per port LEDs
• Offers redundancy with a built-in redundant power supply
• Comes in a standard 2U chassis height, perfect for rack mounting
• Designed for a 19” rack mountable configuration
• Boasts an ample 22MB of packet buffer memory for smooth data flow
• Provides flexibility with the option of 2 x AC or DC Power Supply, with one PSU as default and the second PSU as optional
• Includes a BSP for third party software porting requirement to ensure seamless integration with other systems.
